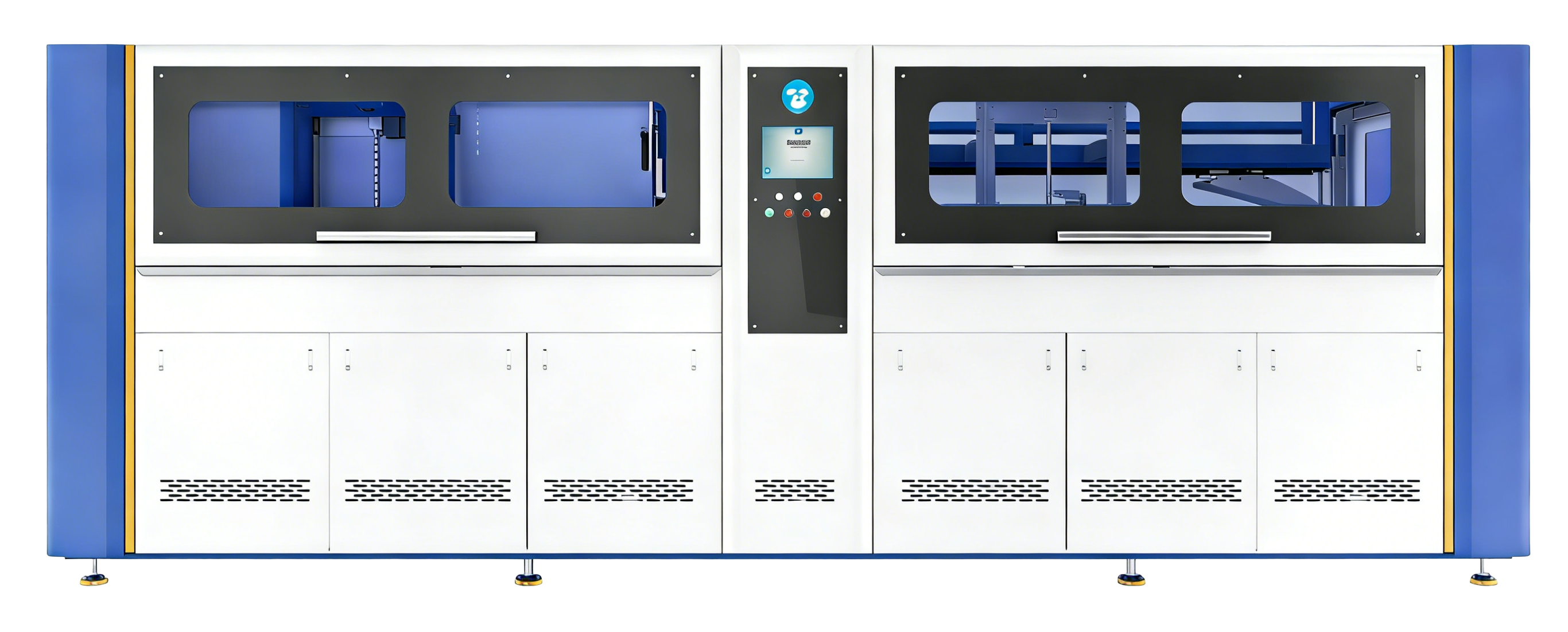

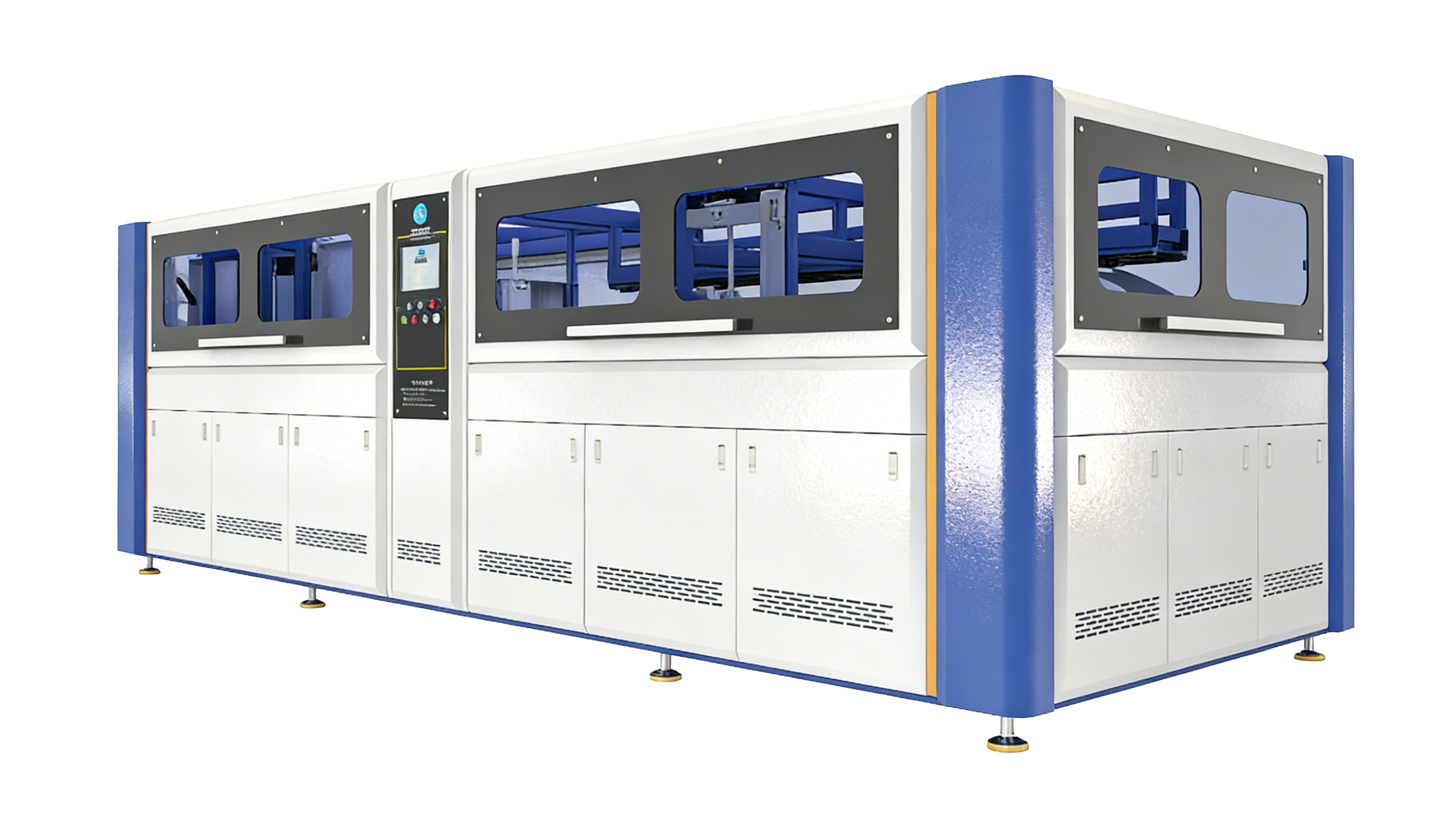

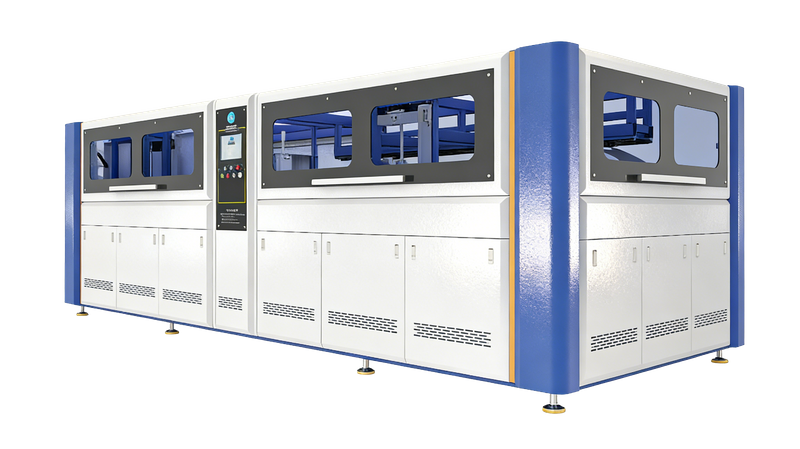

Automatic pocket spring units and foam strips box assembly machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-91201
Availability:

Automatic pocket spring & 4 edges pasted foam strips assembly machine

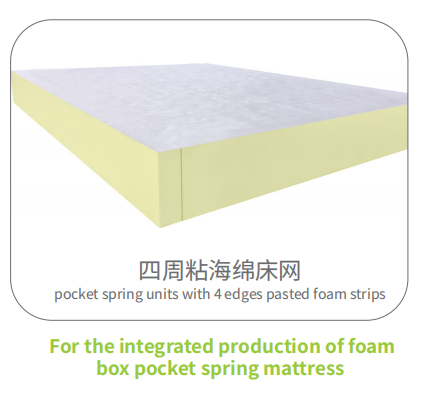

全自动床网四周粘海绵一体机例子




Our Advantages

1. Can automatically produce pocket spring units with 4 edges pasted foamstrips,it is efficient and saves labor costs.

2.The spray adhesive method adopts a patented structure, ensuring a verystrong bond.

3.Using hot melt adhesive instead of traditional water-based glue, there is noneed to wait 24 hours for it to dry.

4. The pocket spring units with 4 edges pasted foam strips produced by thismachine are more neat and beautiful than the ones produced manually.

5. The structure is simple and the maintenance cost is low, and is easy to learn

and get started with.

6. This machine occupies a small area and saves workshop space.


Product name

Automatic pocket spring units and foam strips box assembly machine

Model

YL-91201

Gluing System

Robatech(Switzerland)

Gluing method

spot spray and continuous spray

Sponge strip height 150-450 mm
Pocket Spring Height: 150-450 mm
Sponge strip thickness 60-100 mm
Sponge strip length 1000-2100 mm
Total power 15 KW
Input voltage

3AC380V

Input current

40A

Frequency

50/60 Hz

Air Consumption

0.8m³/min

Air Pressure

0.5-0.6Mpa


YL-91201

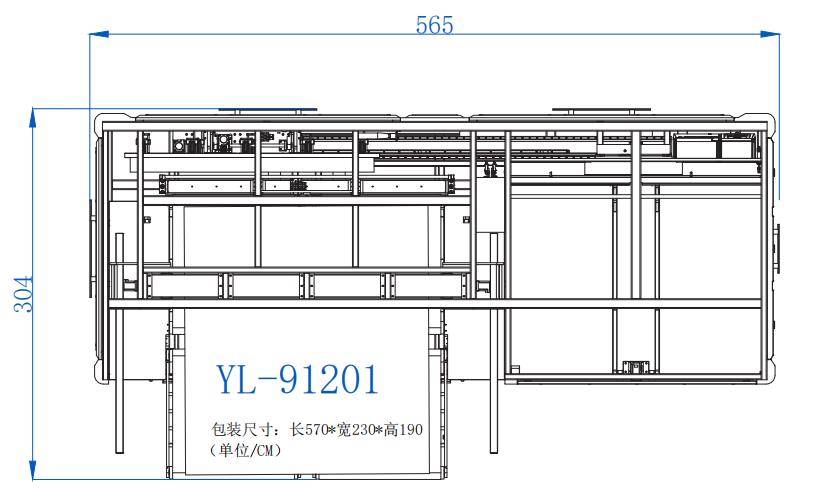

91201二维图






Our Advantages

1. Can automatically produce pocket spring units with 4 edges pasted foamstrips,it is efficient and saves labor costs.

2.The spray adhesive method adopts a patented structure, ensuring a verystrong bond.

3.Using hot melt adhesive instead of traditional water-based glue, there is noneed to wait 24 hours for it to dry.

4. The pocket spring units with 4 edges pasted foam strips produced by thismachine are more neat and beautiful than the ones produced manually.

5. The structure is simple and the maintenance cost is low, and is easy to learn

and get started with.

6. This machine occupies a small area and saves workshop space.

Product name

Automatic pocket spring units and foam strips box assembly machine

Model

YL-91201

Gluing System

Robatech(Switzerland)

Gluing method

spot spray and continuous spray

Sponge strip height150-450 mm
Pocket Spring Height:150-450 mm
Sponge strip thickness60-100 mm
Sponge strip length1000-2100 mm
Total power15 KW
Input voltage

3AC380V

Input current

40A

Frequency

50/60 Hz

Air Consumption

0.8m³/min

Air Pressure

0.5-0.6Mpa


YL-91201

91201二维图
