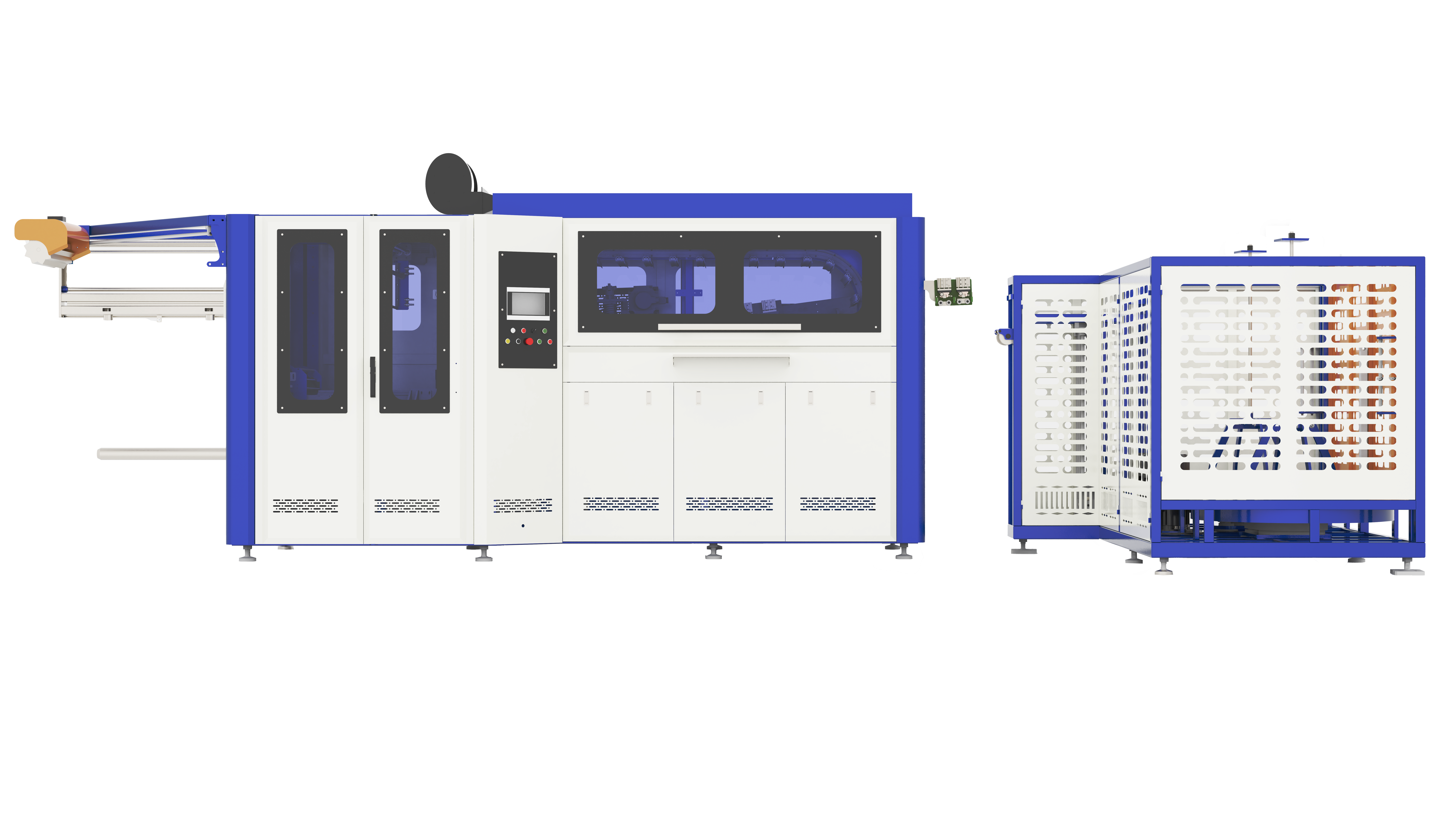

Automatic ultra high pocket spring machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-16701 (single wire)
             YL-16702 (double wire)
Availability:

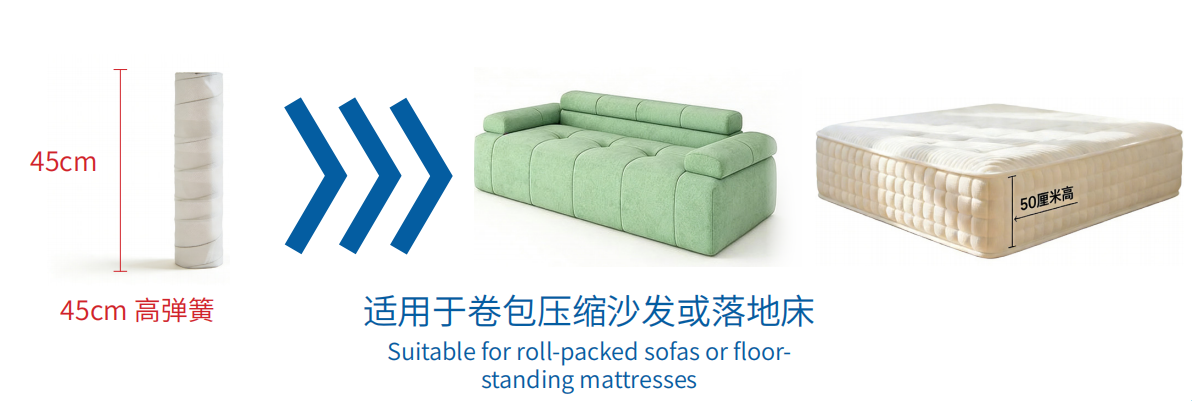

High pocket springs can be used in furniture manufacturing, especially in the production of roll-packed sofas and mattresses
Save manufacturing material costs: Due to the higher height of pocket springs, the use of filing materials can be reduced,for example,ifproducing 14 inch high mattresses, 30-32cm high pocket springs can be used to save filing materials (such as sponge, latex ) if producingroll-packed sofas, using 30-3Scm high pocket springs for seat cushions,which can save about halfof material costs compared to traditionalhigh-density sponges.(High springs cost about RMB 230/m³,high-density sponge costs about RMB 450/m³)

Save logistics and warehousing costs: Roll-packed sofas, similar to roll-packed mattresses, their volumes are greatly reduced, which cansave alot of space during transportation, thereby reducing logistics costs and making them easy to carry, similary, due to the reduction involume, the costs of warehousing also decreases.

e2c723b047e1544ab4db2b43a4bda20f



Our Advantages

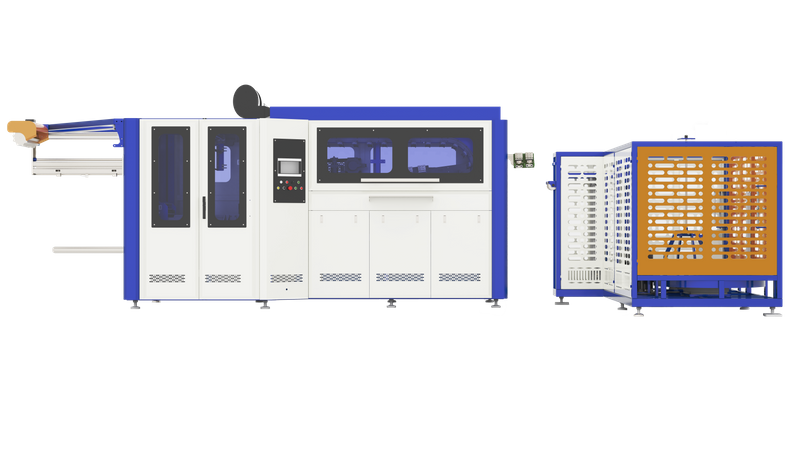

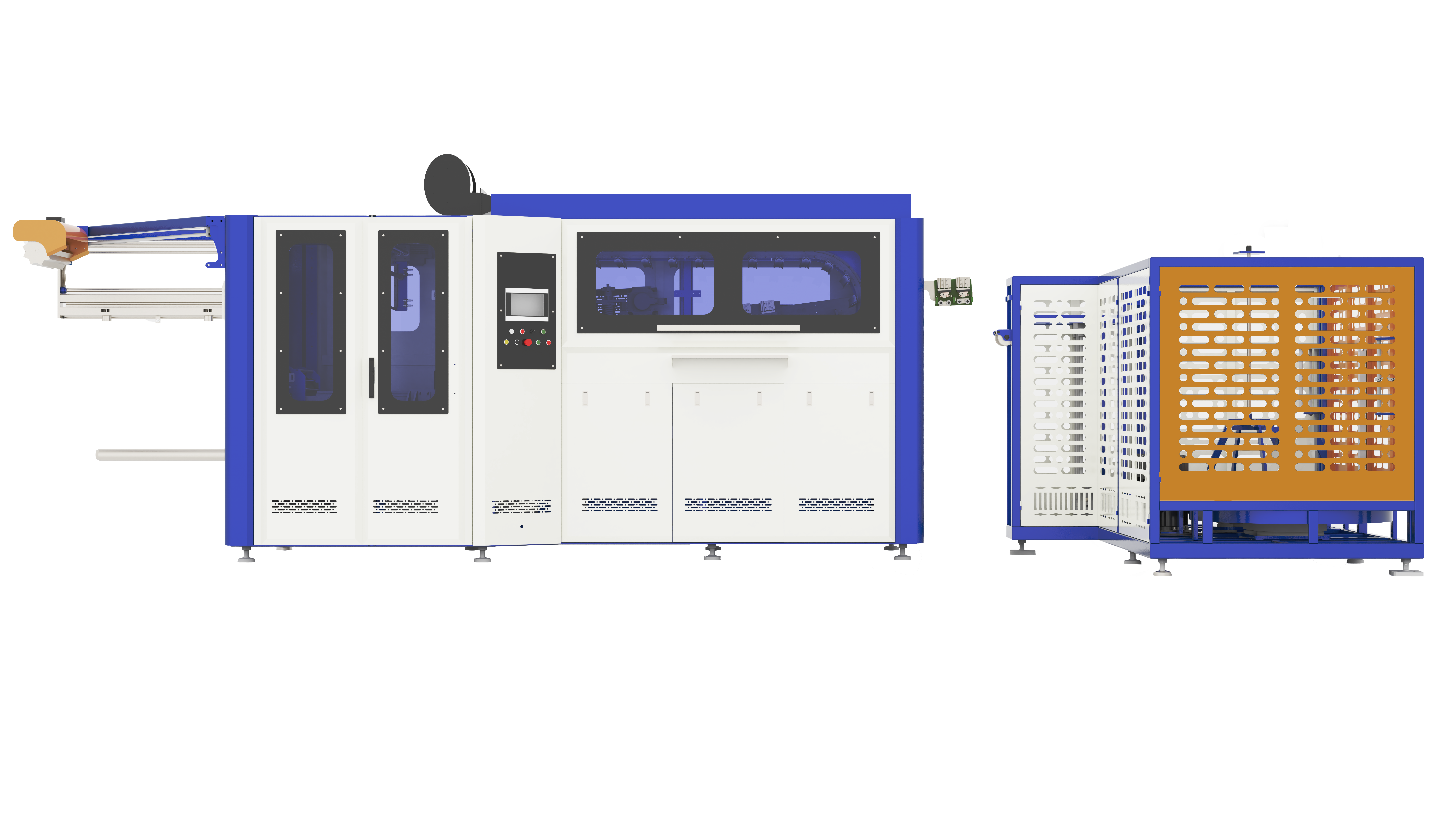

YL-16701

spring 弹簧两次处理

1. Both high compression springs and conventional springs can be produced.
2. The spring in the pocket can reach a maximum height of 45cm, making ithighly suitable for roll-packed sofas and floor-standing mattresses, significantlyreducing material costs.

3. Both cross-welding and edge-welding are driven by servo motors (rather thancylinders), which saves electricity and does not affect production even in lowtemperatures during winter.

4. With less operation pages and less parameters, it is easy to operate and evenbeginners can quickly get started.

5. The machine has a simple structure and is easy to maintain.
6. With fewer wearing parts,the daily operating cost of the machine is relativelylow.

YL-16702

1. Both high compression springs and conventional springs can be produced.2. The spring in the pocket can reach a maximum height of 45cm, making ithighly suitable for roll-packed sofas and floor-standing mattresses, significantlyreducing material costs.

3. Both cross-welding and edge-welding are driven by servo motors (rather thancylinders), which saves electricity and does not affect production even in lowtemperatures during winter.

4.With less operation pages and less parameters, it is easy to operate and evenbeginners can quickly get started.

5. Thick and thin steel wire springs can be produced at intervals according to settings,suitable for producing power-edge mattresses.
6. The machine has a simple structure and is easy to maintain.
7. With fewer wearing parts,the daily operating cost of the machine is relativelylow.


Product name

Automatic ultra high pocket spring machine

Model

YL-16701

YL-16702

Efficiency

140 springs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs: Wire Diameter: Φ1.7-Φ2.0mm
Spring Waist Diameter: Φ63-Φ73mm
Pocket Spring Height: 220-450mm
Spring Compression: ≤180mm
Pocket Spring Height: 220-450mm
Power Consumption

30KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

590-1060mm

Weight

4000 KG

4500 KG

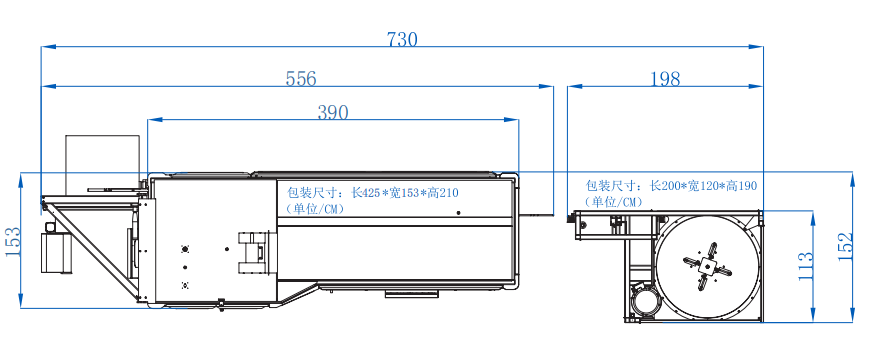

YL-16701

16701二维图

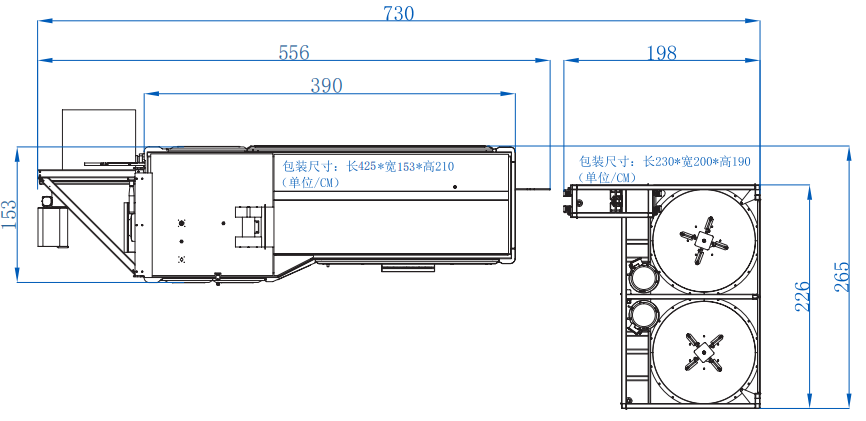

YL-16702

16702二维图









Our Advantages


16701

1. Both high compression springs and conventional springs can be produced.
2. The spring in the pocket can reach a maximum height of 45cm, making ithighly suitable for roll-packed sofas and floor-standing mattresses, significantlyreducing material costs.

3. Both cross-welding and edge-welding are driven by servo motors (rather thancylinders), which saves electricity and does not affect production even in lowtemperatures during winter.

4. With less operation pages and less parameters, it is easy to operate and evenbeginners can quickly get started.

5. The machine has a simple structure and is easy to maintain.
6. With fewer wearing parts,the daily operating cost of the machine is relativelylow.

16702

1. Both high compression springs and conventional springs can be produced.
2. The spring in the pocket can reach a maximum height of 45cm, making ithighly suitable for roll-packed sofas and floor-standing mattresses, significantlyreducing material costs.

3. Both cross-welding and edge-welding are driven by servo motors (rather thancylinders), which saves electricity and does not affect production even in lowtemperatures during winter.

4.With less operation pages and less parameters, it is easy to operate and evenbeginners can quickly get started.

5. Thick and thin steel wire springs can be produced at intervals according to settings,suitable for producing power-edge mattresses.
6. The machine has a simple structure and is easy to maintain.
7. With fewer wearing parts,the daily operating cost of the machine is relativelylow.


Product name

Automatic ultra high pocket spring machine

Model

YL-16701

YL-16702

Efficiency

140 springs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs:Wire Diameter: Φ1.7-Φ2.0mm
Spring Waist Diameter:Φ63-Φ73mm
Pocket Spring Height:220-450mm
Spring Compression:≤180mm
Pocket Spring Height:220-450mm
Power Consumption

30KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

590-1060mm

Weight

4000 KG

4500 KG


16701

16701二维图

16702


16702二维图
