High speed automatic ultra high pocket spring assembly machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-52501

Availability:


Our Advantages

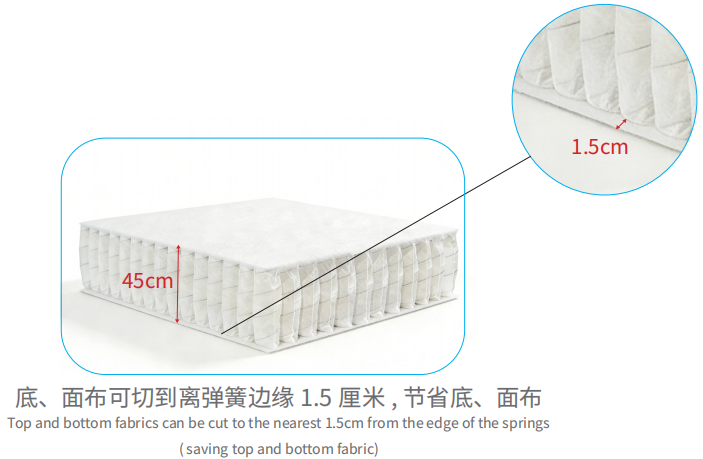

1.The cutting blade structure for cutting bottom and top fabrics has been speciallydesigned, and can be cut nearest to 1.5 cm away from the spring edge, which savesbottom and top fabrics compared to ordinary automatic assembly machines (up to 5centimeters).

2.When connected to the automatic foam feeding machine, it is possible to producefolding roll-packed mattresses (with a foam strip inserted in the middle of the pocketspring units).

3.It can produce pocket spring units up to 45cm in height, making them ideal for usein roll-packed sofas and floor-standing mattresses.

4.The operating system is designed very simply, and the conversion of productionspecifications is easy and fast.

5.The machine is equipped with high-precision detection switches, which, inconjunction with the program, can effectively identify defective springs and dischargethem, avoiding them from sticking to become defective pocket spring units.

6.Can produce zoned and power-edge mattresses.

7. Can produce pocket spring units with double-sided , single-sided adhered non-woven fabric, or with both sides adheres non-woven fabric.8. The machine occupies a small area, saving your factory space.

微信图片_20260413112016_69_190


Product name High speed automatic ultra high pocket spring assembly machine
Model YL-52501
Efficiency 17~18 rows/min
Gluing System Robatech(Switzerland)
Gluing method spot spray and continuous spray
Pocket spring height 200-450 mm
Total power 15KW
Input voltage 3AC380
Input current 40A
Frequency 50/60Hz
Air consumption 0.25m³/min
Air pressure 0.5-0.6mpa
Form auto production line can equip up to 3 spring machines
Weight 4500Kg


YL-52501

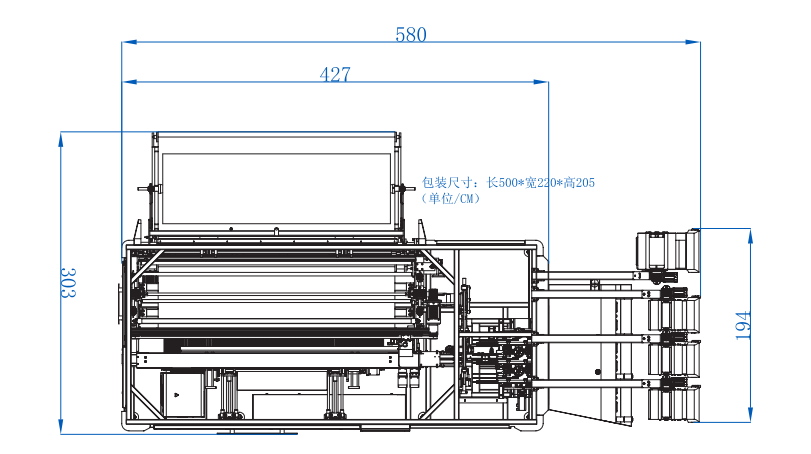

52501二维图







Our Advantages

1.The cutting blade structure for cutting bottom and top fabrics has been speciallydesigned, and can be cut nearest to 1.5 cm away from the spring edge, which savesbottom and top fabrics compared to ordinary automatic assembly machines (up to 5centimeters).

2.When connected to the automatic foam feeding machine, it is possible to producefolding roll-packed mattresses (with a foam strip inserted in the middle of the pocketspring units).

3.It can produce pocket spring units up to 45cm in height, making them ideal for usein roll-packed sofas and floor-standing mattresses.

4.The operating system is designed very simply, and the conversion of productionspecifications is easy and fast.

5.The machine is equipped with high-precision detection switches, which, inconjunction with the program, can effectively identify defective springs and dischargethem, avoiding them from sticking to become defective pocket spring units.

6.Can produce zoned and power-edge mattresses.

7. Can produce pocket spring units with double-sided , single-sided adhered non-woven fabric, or with both sides adheres non-woven fabric.8. The machine occupies a small area, saving your factory space.




Product nameHigh speed automatic ultra high pocket spring assembly machine
ModelYL-52501
Efficiency17~18 rows/min
Gluing SystemRobatech(Switzerland)
Gluing methodspot spray and continuous spray
Pocket spring height200-450 mm
Total power15KW
Input voltage3AC380
Input current40A
Frequency50/60Hz
Air consumption0.25m³/min
Air pressure0.5-0.6mpa
Form auto production linecan equip up to 3 spring machines
Weight4500Kg



YL-52501

52501二维图
