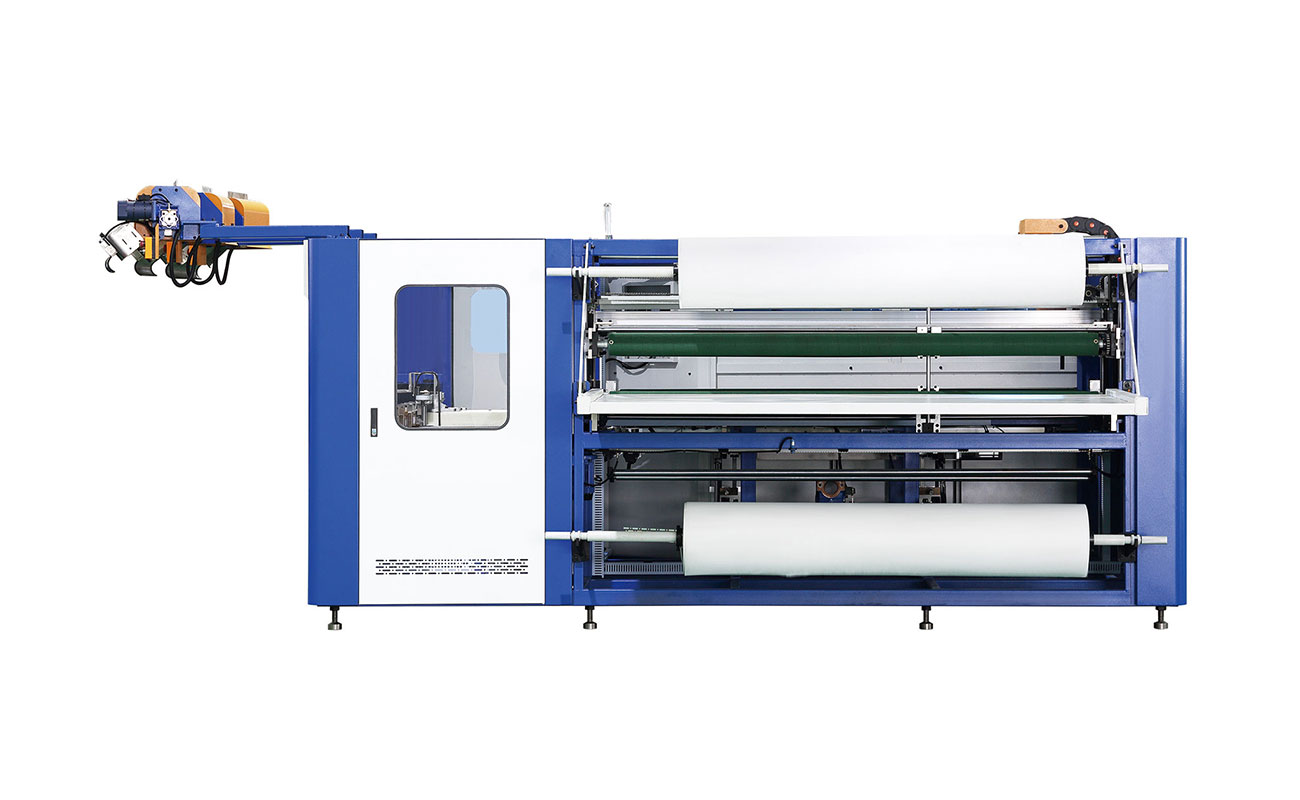

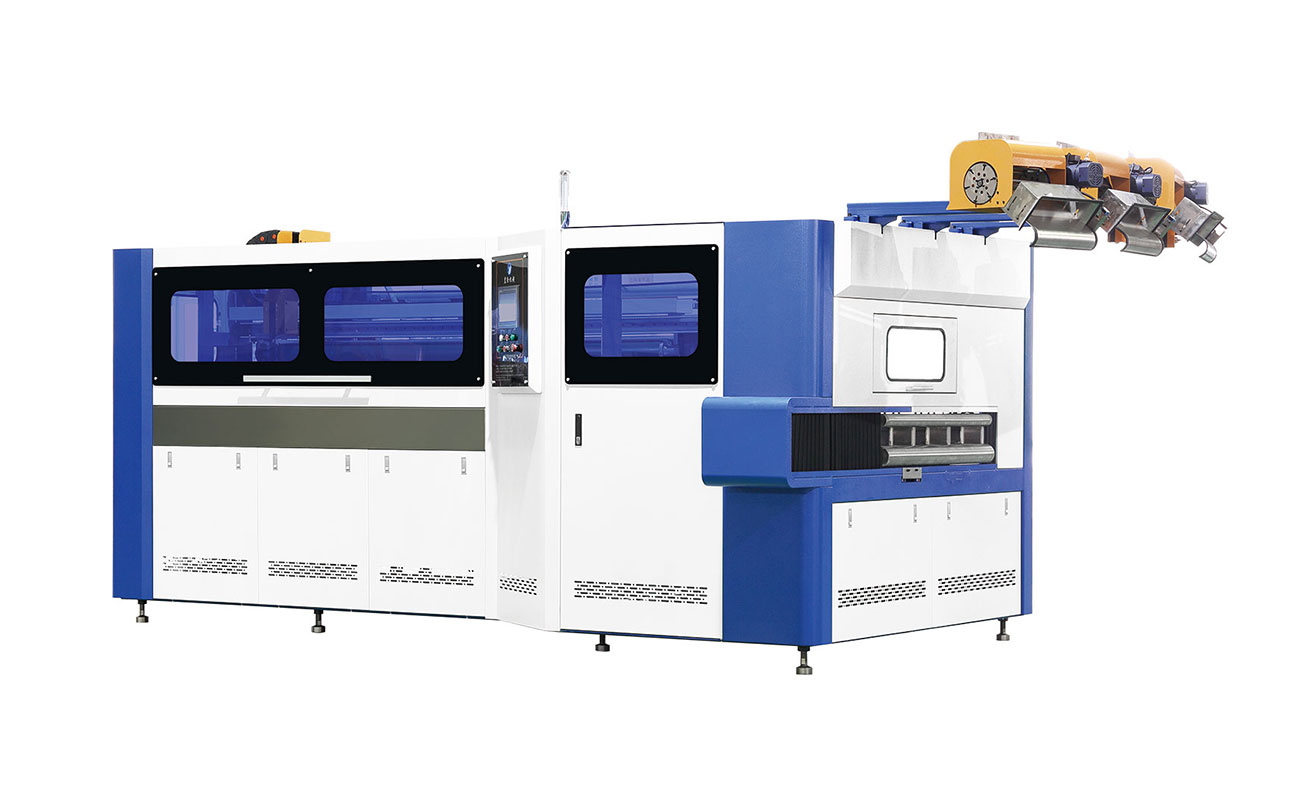

Automatic pocket spring assembly machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-55201
Availability:

This is a very cost-effective automatic assembly machine, which is a good alternative to manual assembly machines


Its production range is from spring height 8cm to 26cm, and it is easy to operate.In addition to producing mattress

pocket spring units, it can also be used to produce sofa seat spring cushions






Our Advantages

1.The operating system is designed very simply, and the conversion ofproduction specifications is easy and fast.
2.The machine is equipped with high-precision detection switches, which, inconjunction with the program, can effectively identify defective springs anddischarge them, avoiding them from sticking to become defective pocket springunits.

3.Can produce zoned and power-edge mattresses.

4. Can produce pocket spring units with double-sided , single-sided adherednon-woven fabric, or with both sides adheres non-woven fabric.

5. The machine occupies a small area, savingyour factory space.



Product name

Automatic pocket spring assembly machine

Model

YL-55201

Efficiency

12 rows/min

Gluing System

Meler(Spain)/Robatech(Switzerland)

Working Principle

Servo Control

Gluing method

spot spray and continuous spray

Pocket Spring Height: 80-260mm (Customizable up to 60mm)
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

Can equip 1 or 2 or up to 3 spring machines

Weight

4000 KG

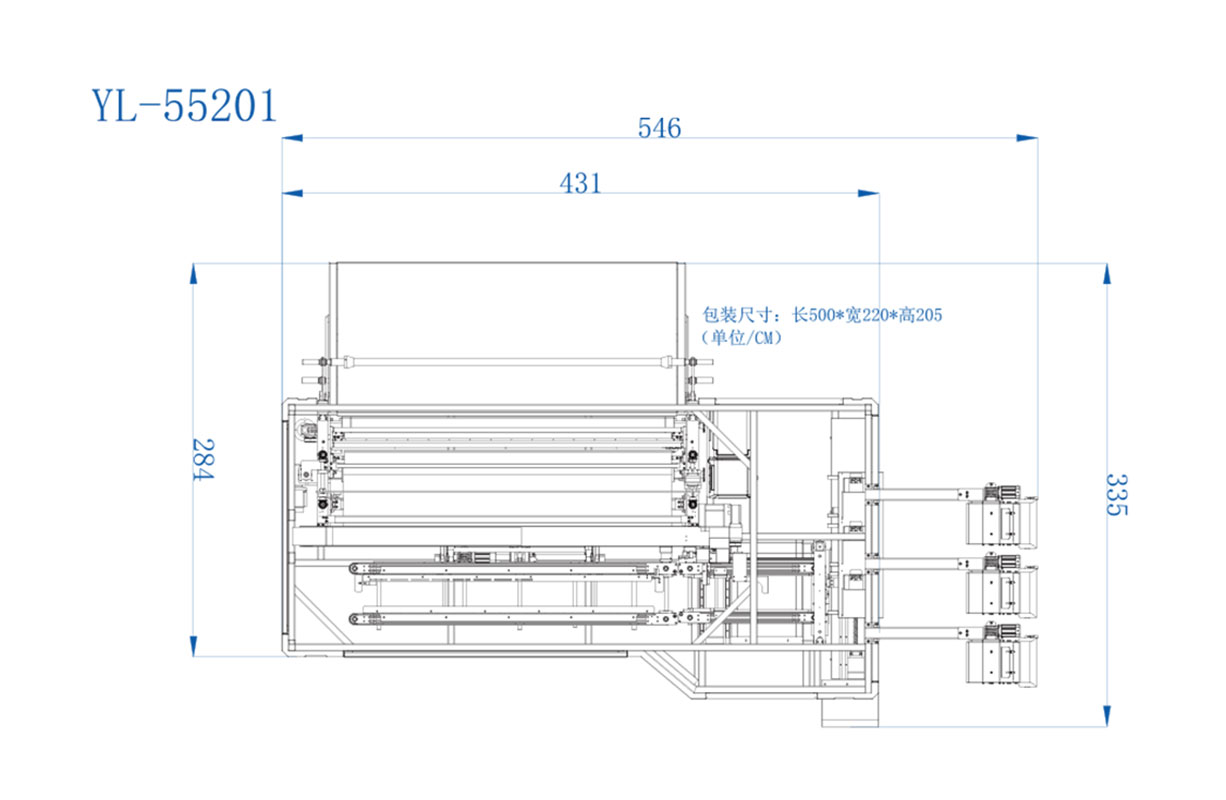

07-55201







Our Advantages

1.The operating system is designed very simply, and the conversion ofproduction specifications is easy and fast.
2.The machine is equipped with high-precision detection switches, which, inconjunction with the program, can effectively identify defective springs anddischarge them, avoiding them from sticking to become defective pocket springunits.

3.Can produce zoned and power-edge mattresses.

4. Can produce pocket spring units with double-sided , single-sided adherednon-woven fabric, or with both sides adheres non-woven fabric.

5. The machine occupies a small area, savingyour factory space.

Product name

Automatic pocket spring assembly machine

Model

YL-55201

Efficiency

12 rows/min

Gluing System

Meler(Spanish)

Working Principle

Servo Control

Gluing method

spot spray and continuous spray

Pocket Spring Height:80-260mm (Customizable up to 60mm)
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

Can equip 1 or 2 or up to 3 spring machines

Weight

4000 KG


07-55201
