Model:YL-80001

Availability:

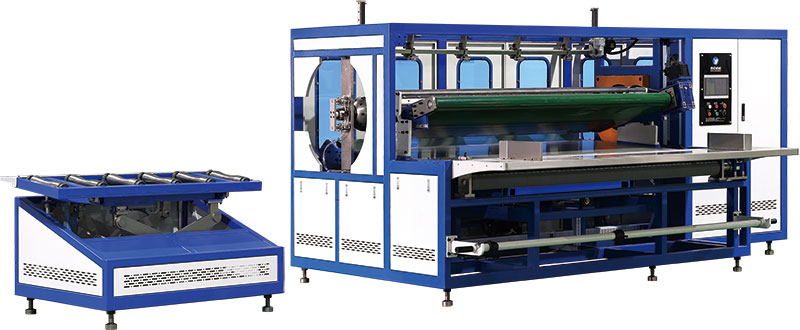

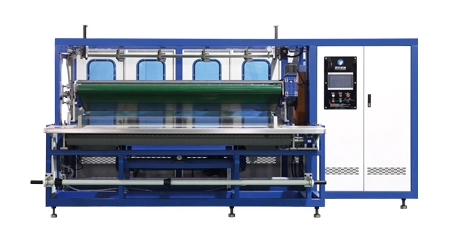

Automatic pocket spring unit roll-packing machine



YL-80001


Our Advantages



1.This machine can be connected to the automatic assembly machine,  no need to manually feed the pocket spring units to it, and it can  automatically roll-pack, saving labor costs;

2. When each roll of pocket spring units reaches the set quantity (such as  10 sheets/roll), this machine will automatically cut the PP woven fabric ,  wrap the sticky tape and cut it, and then send out the roll;

3. This machine precisely controls the roll-packing action through servo  motors and PLC, and adopts progressive pressure control to ensure rollpacking size, tightness and sealing strength


Product name

Automatic pocket spring unit roll-packing machine

Model

YL-80001

Efficiency

10 rolls/hour

Pocket spring height 100-300 mm
Power Consumption

1.3 KW

Voltage

3AC380V

Input Current

35 A

Frequency

50/60 Hz

Air Consumption

0.25 m³/min

Weight

3500 KG


80001







Automatic pocket spring unit roll-packing machine



YL-80001



Our Advantages



1.This machine can be connected to the automatic assembly machine,  no need to manually feed the pocket spring units to it, and it can  automatically roll-pack, saving labor costs;

2. When each roll of pocket spring units reaches the set quantity (such as  10 sheets/roll), this machine will automatically cut the PP woven fabric ,  wrap the sticky tape and cut it, and then send out the roll;

3. This machine precisely controls the roll-packing action through servo  motors and PLC, and adopts progressive pressure control to ensure rollpacking size, tightness and sealing strength




Product name

Automatic pocket spring unit roll-packing machine

Model

YL-80001

Efficiency

10 rolls/hour

Pocket spring height100-300 mm
Power Consumption

1.3 KW

Voltage

3AC380V

Input Current

35 A

Frequency

50/60 Hz

Air Consumption

0.25 m³/min

Weight

3500 KG


80001
