High compression automatic pocket spring machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

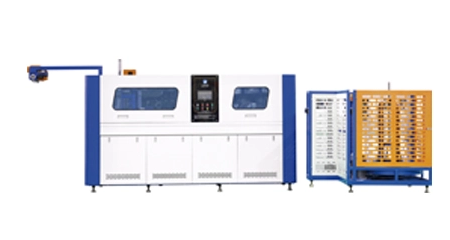

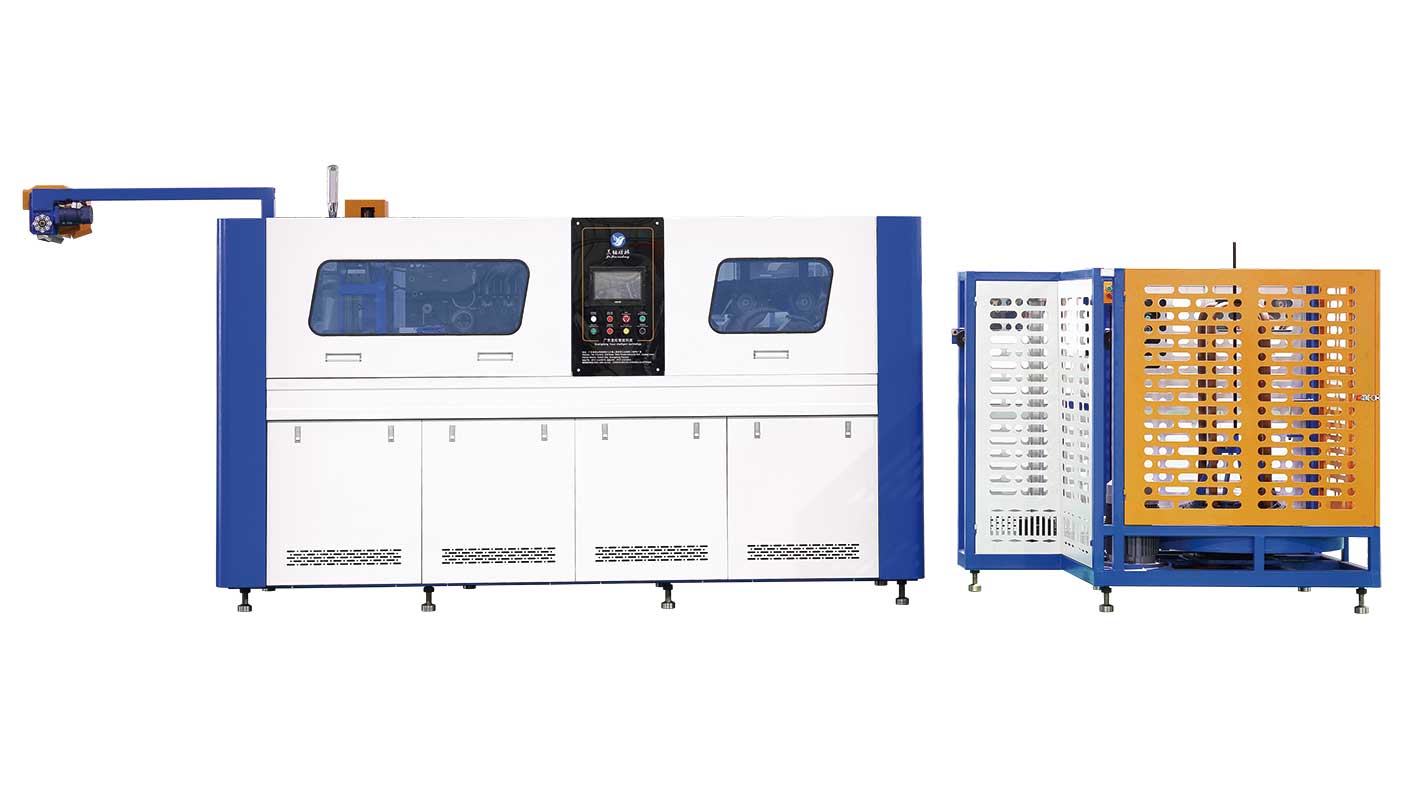

Model:YL-15701(single wire)

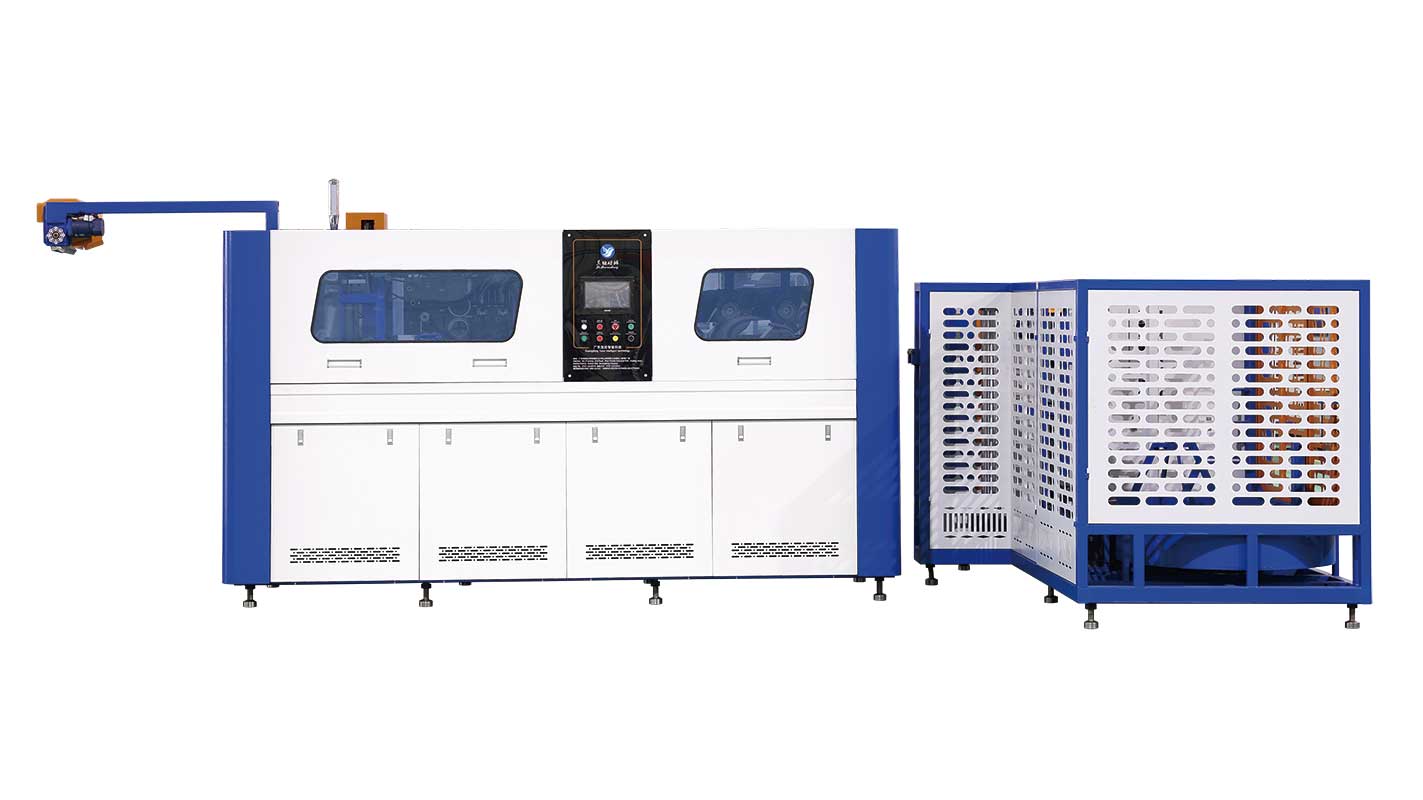

                YL-15702 (double wire)
Availability:

China‘s black technology, a revolutionary breakthrough in spring machines!

You can save more than 20% of the steel wire cost while achieving a similar mattress rebound effect for each mattress .


弹簧


This is a spring machine that can produce high compression ratios as well as

conventional springs.


This machine adopts the latest mechanism and technology, which can provide greater compression of the spring to meet the goal of saving steel wire costs.

We can customize the machine to produce high compression springs of 35 cm after pocketing according to clients’ requirements, which will give clients a cost advantage in producing mattresses



Our Advantages


1.  Both high compression springs and conventional springs can be produced


2.  Under similar resilience effects, the high compression pocket springmattresses produced can save over 20%6 of steel wire costs compared toconventional pocket springmattresses


3.  When producing power edge mattress, the machine has a device thattightens the non-woven so that the thick wire springs will not be higher thanthe thin wire springs


4.  With less operation pages and less parameters, it is easy to operate andeven beginners can quickly get started


5.  The machine has a simple structure and is easy to maintain


6.  This machine has simple structures,less wearing parts.And the prices for wearing parts are reasonable,so the daily use of costs ofthis machine is low


Product name

High compression automatic pocket spring  machine

Model

YL-15701

YL-15702

Efficiency

120 pcs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs: Wire Diameter: Φ1.7-Φ2.0mm
Spring Waist Diameter: Φ65-Φ73mm
Pocket Spring Height: 140-250mm or 140-300mm
Spring Compression: ≤150mm
Power Consumption

25 KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

450-780mm

Weight

3200 KG

4000 KG

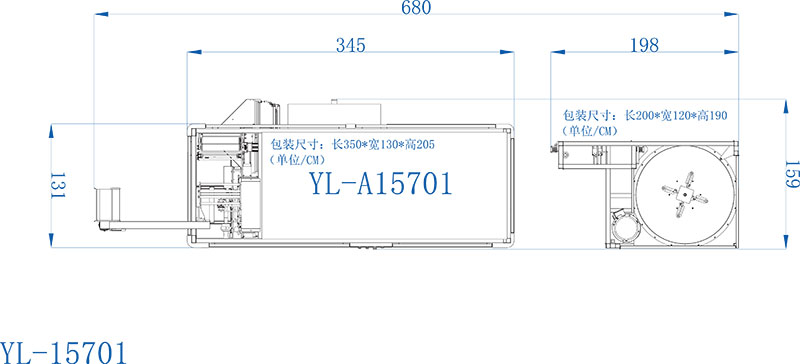

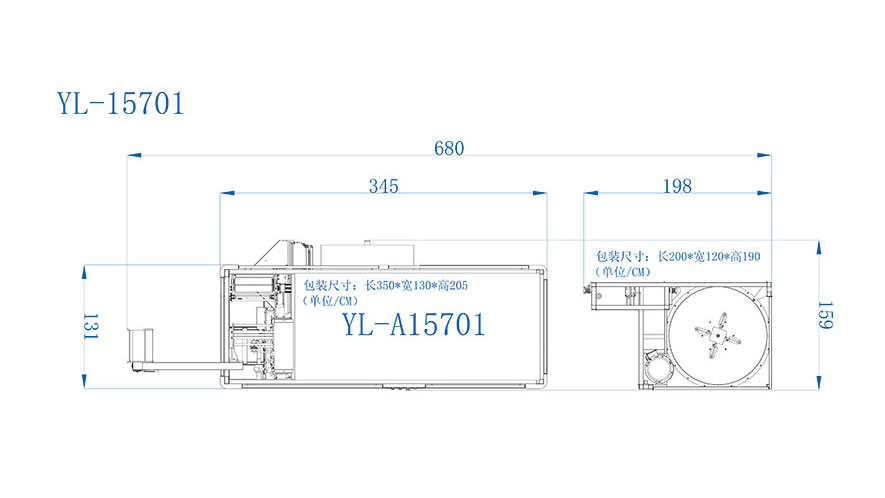

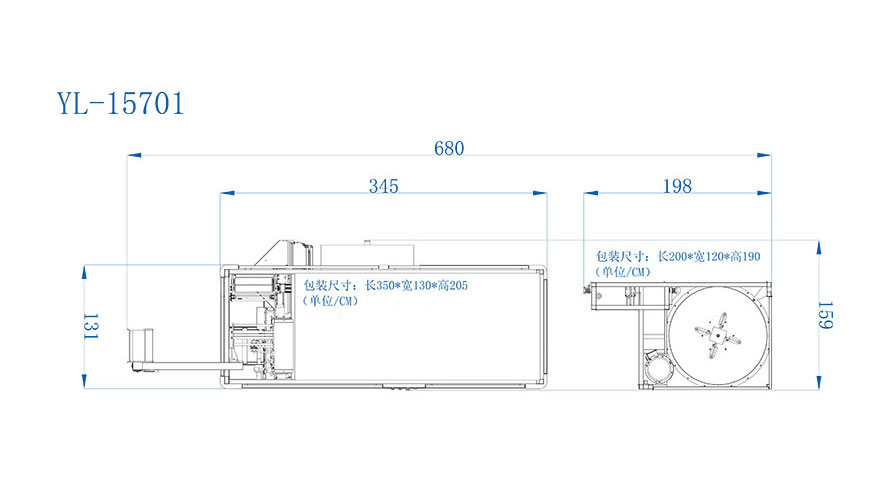

03-15701

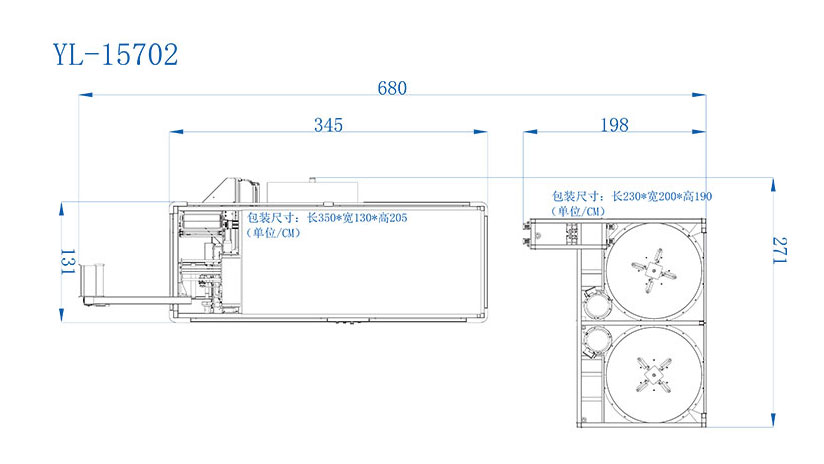

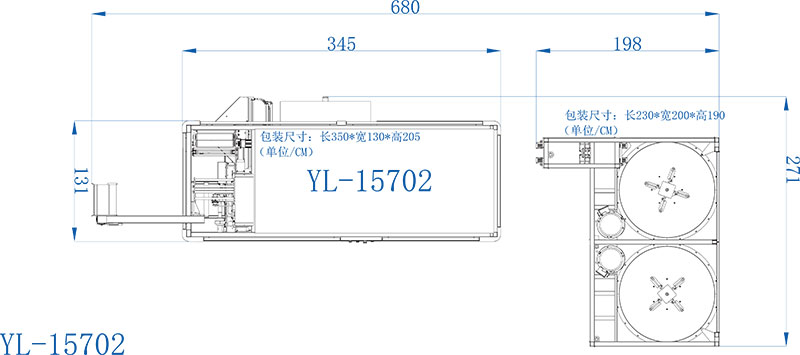

04-15702







Cost saving case

High compression sping in1.7mm wireConventonal spring in 2.0mm wire
Weight of each spring(g)2026.5
weiht saved of eath sping(g)6.5
size of spring unit(mm)1800x2000x180
Springcount29x32=928 springs28x31=868 springs
Wire weight of the spring unit20x928=18560g
≈18.6kg
26.5x868 = 23002g
≈23kg
Wire weight saved of each spring unit23-18.6=4.4
Cost saving of each spring unit(kg)¥ 5/kgx 4.4kg=¥22
$0.9/kg x4.4kg=$3.96
Cost saving for producing 500 spring units each day¥22x500=¥11000
$3.96x500= $1980



Our Advantages

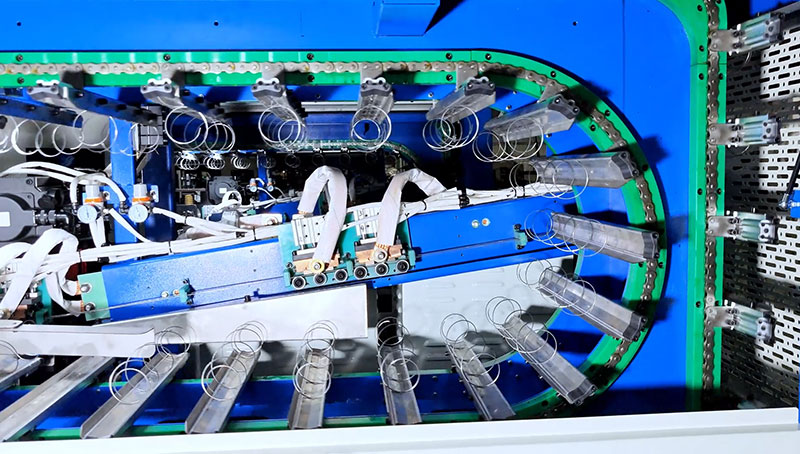

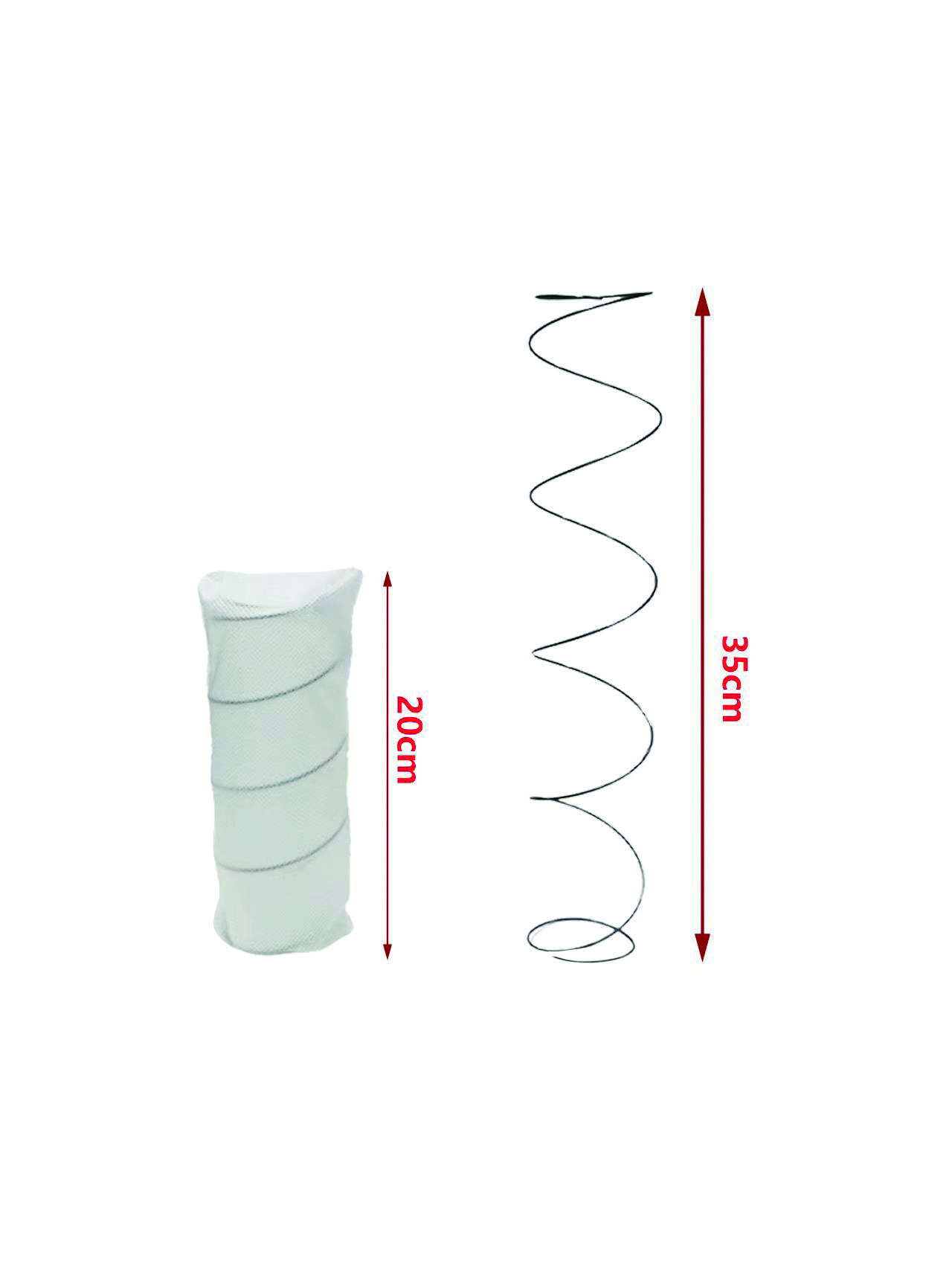

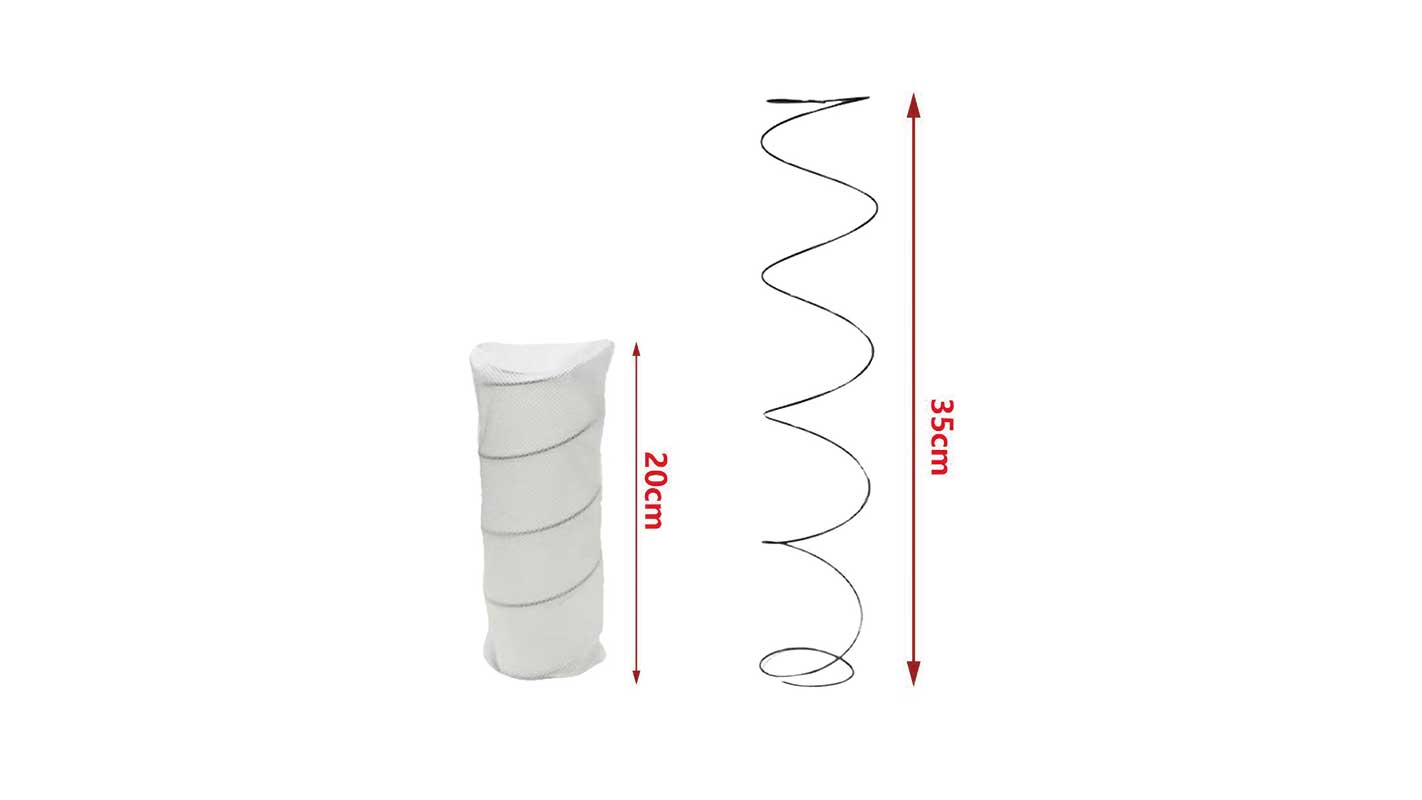

1.This machin弹簧两次处理e can produce the highest springs in the industry,the height of the spring

after pocketing can reach up to 35cm

2.The welding devices of this machine are driven by servo motors instead of cylinders,

so even in winter when the temperature is below 0 degrees, it will not affect production due to cylinder icing

3. When producing power edge mattress, the machine has a device that tightens the non-woven

so that the thick wire springs will not be higher than the thin wire springs

4.Under similar resilience effects, the high compression pocket spring mattresses produced can

save over 20% of steel wire costs compared to conventional pocket spring mattresses

5. Both high compression springs and conventional springs can be produced


Product name

High compression automatic pocket spring  machine

Model

YL-15701

YL-15702

Efficiency

120 pcs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs:Wire Diameter: Φ1.7-Φ2.0mm
Spring Waist Diameter:Φ65-Φ73mm
Pocket Spring Height:140-250mm or 140-300mm
Spring Compression:≤150mm
Power Consumption

25 KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

450-780mm

Weight

3200 KG

4000 KG

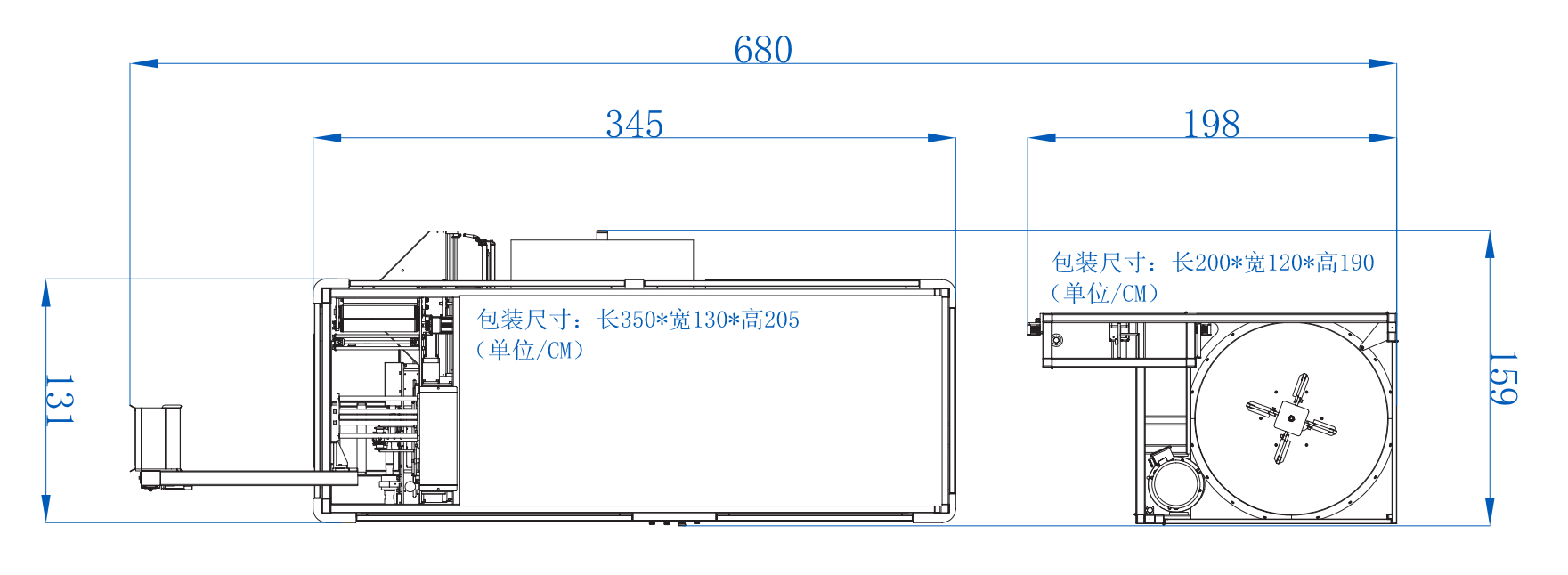

03-15701

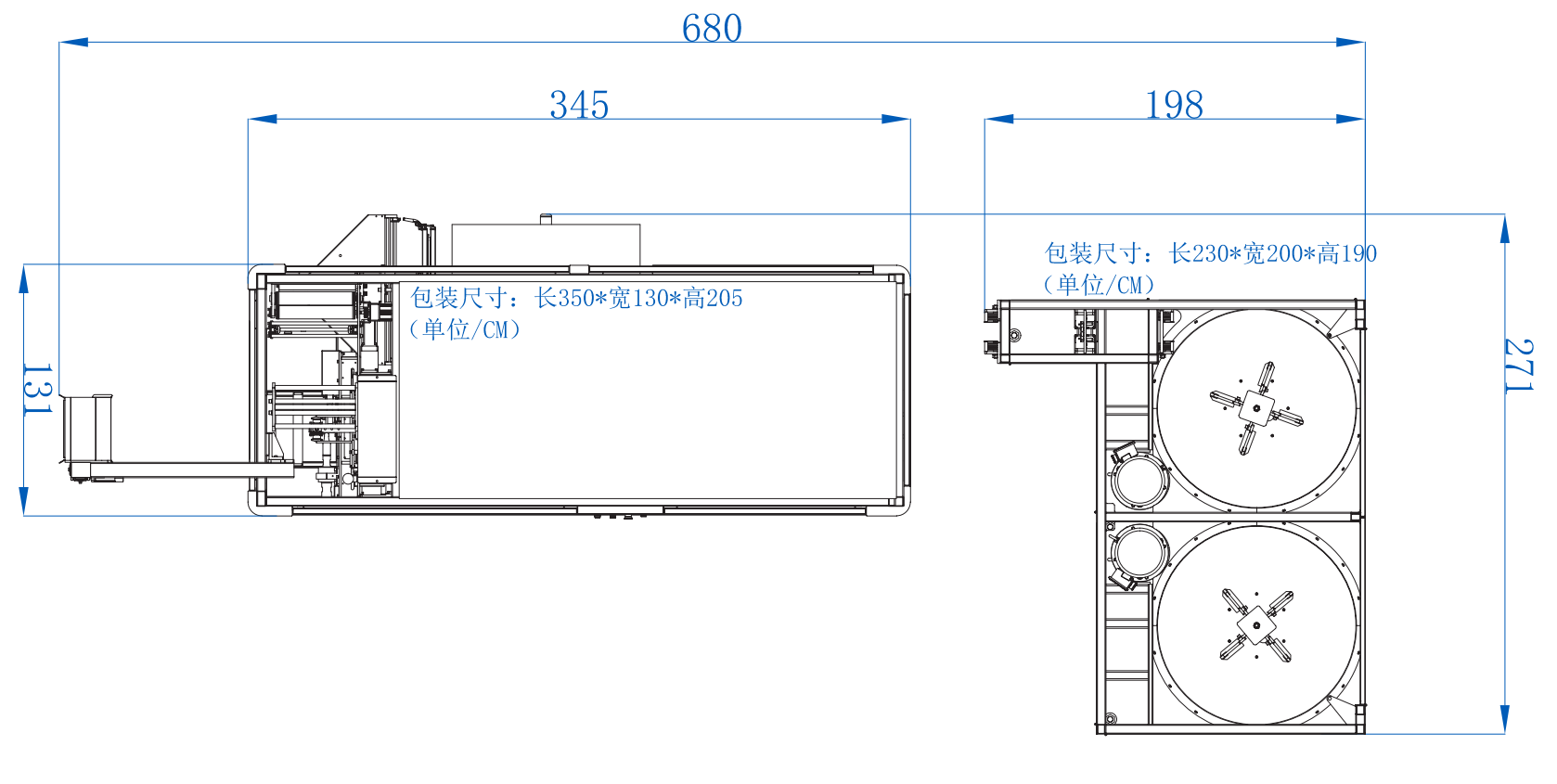

04-15702
