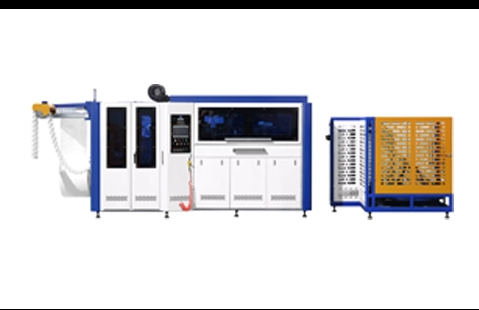

High compression high speed automatic pocket spring machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

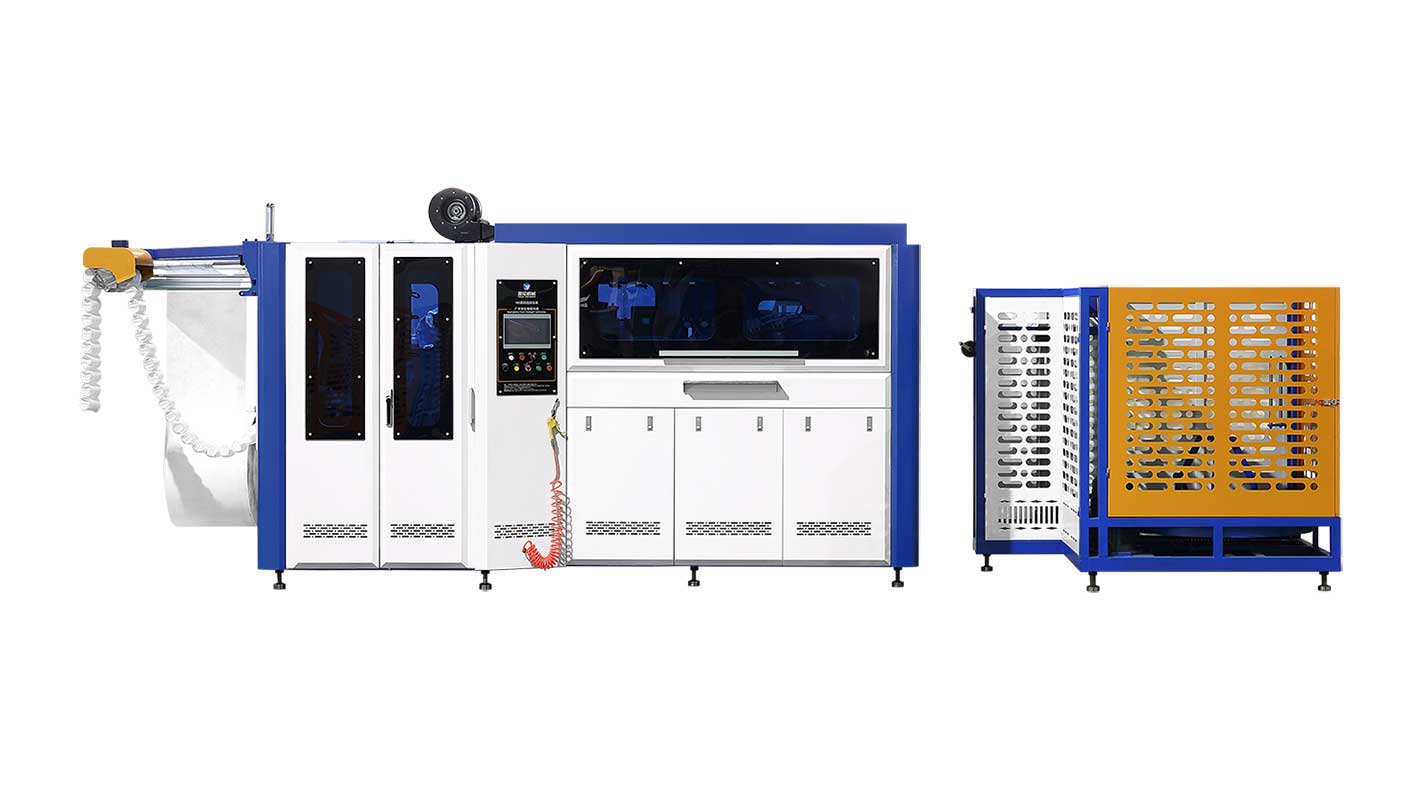

Model:YL-16601 (single wire)

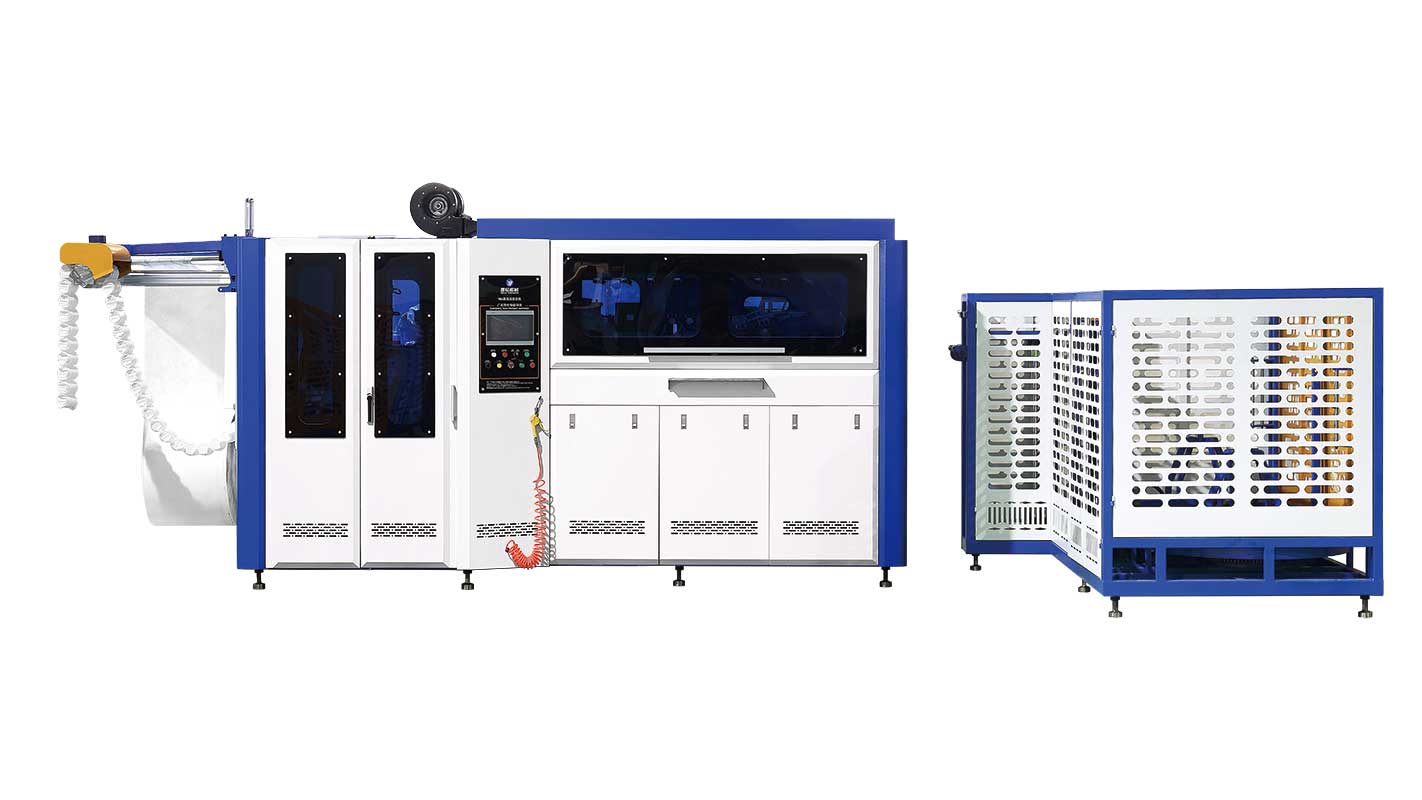

                YL-16602 (double wire)
Availability:

China‘s black technology, a revolutionary breakthrough in spring machines!

You can save more than 20% of the steel wire cost while achieving a similar mattress rebound effect for each mattress .




This is a spring machine that can produce high compression ratios as well as conventional springs.


This machine adopts the latest mechanism and technology, which can provide greater compression of the spring to meet the goal of saving steel wire costs.


We can customize the machine to produce high compression springs of 30 cm after pocketing according to clients’ requirements, which will give clients a cost advantage in producing mattresses


Cost saving case

High compression sping in1.7mm wire Conventonal spring in 2.0mm wire
Weight of each spring (gram) 20 26.5
Weight saved of eath sping (gram) 6.5
Size of spring unit (mm) 1800x2000x180
Spring count 29x32=928 springs 28x31=868 springs
Wire weight of the spring unit 20x928=18560g
≈18.6kg
26.5x868 = 23002g
≈23kg
Wire weight saved of each spring unit 23-18.6=4.4 (kg)
Cost saving of each spring unit (kg) ¥ 5/kgx 4.4kg=¥22
$0.9/kg x4.4kg=$3.96
Cost saving for producing 500 spring units each day ¥22x500=¥11000
$3.96x500= $1980


Our Advantages

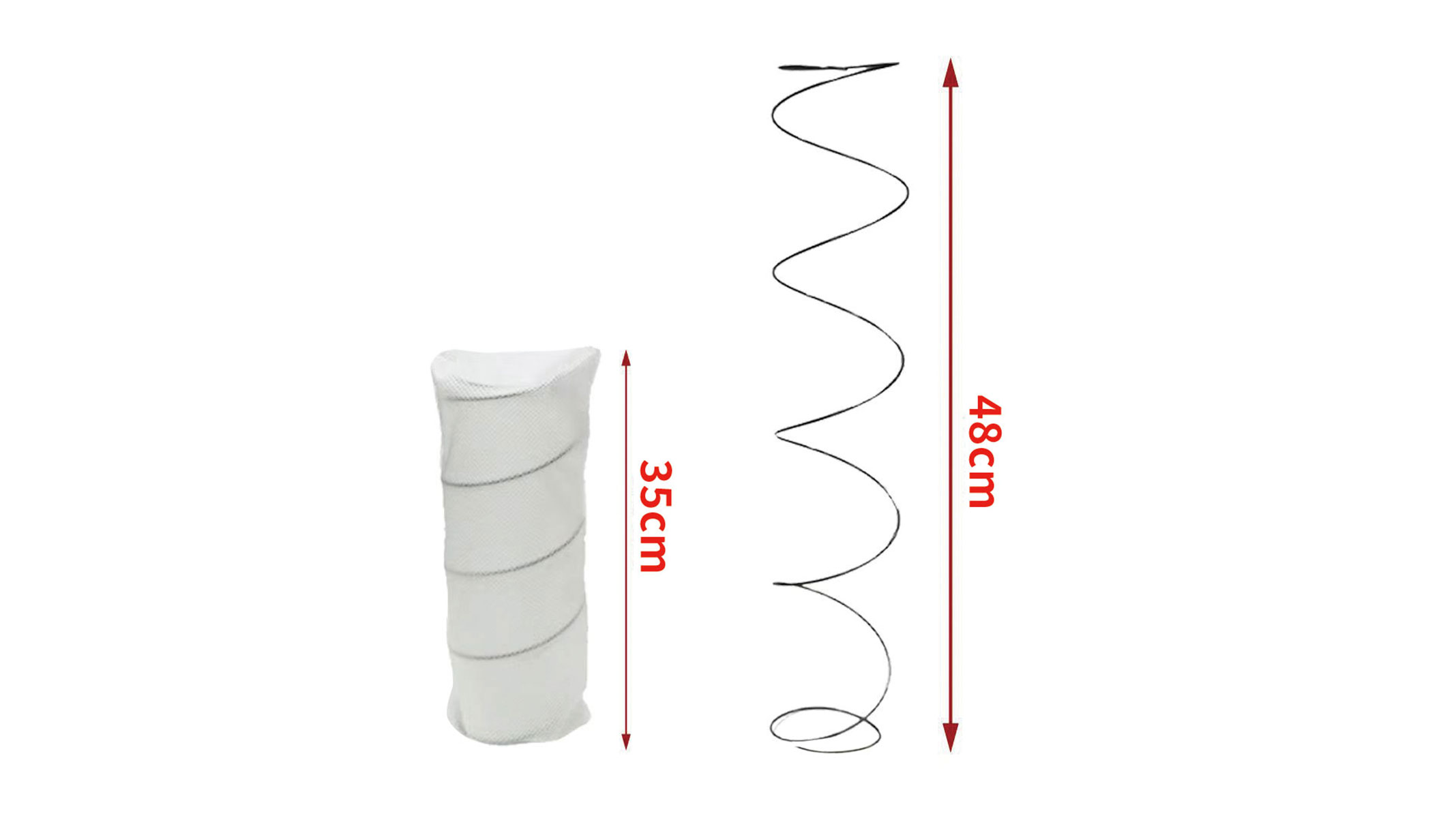

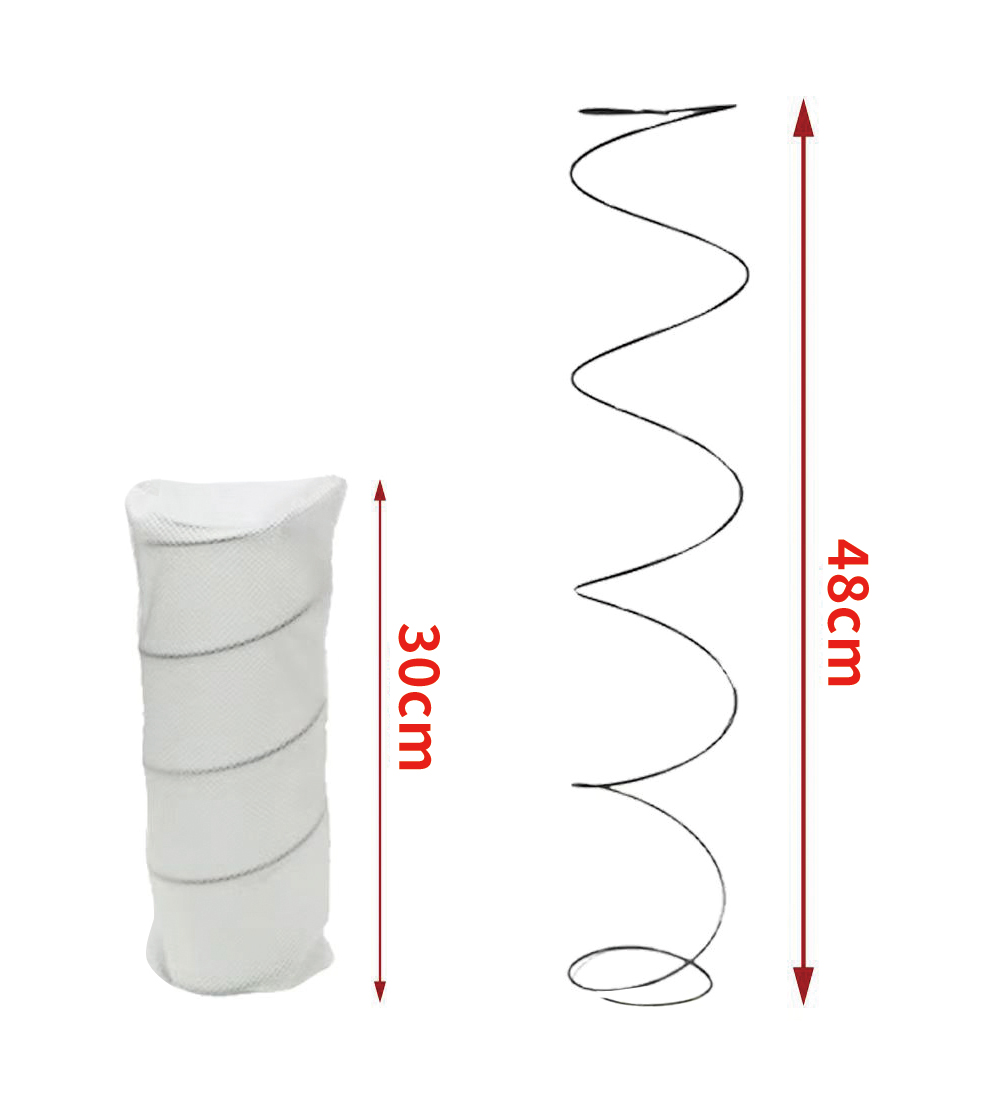

spring 弹簧两次处理1.   This machine can produce the highest springs in the industry,the height of the spring after pocketing can reach up to 30cm(even 35 cm)


2.  The welding devices of this machine are driven by servo motors instead of cylinders,so even in winter when the temperature is below 0 degrees, it will not affect production due to cylinder icing


3.   When producing power edge mattress, the machine has a device that tightens the non-woven, so that the thick wire springs will not be higher than the thin wire springs


4.   Under similar resilience effects, the high compression pocket spring mattresses produced can save over 20% of steel wire costs compared to conventional pocket spring mattresses


5.    Both high compression springs and conventional springs can be produced


Product name

High compression high speed automatic pocket spring coiling machine

Model

YL-16601

YL-16602

Efficiency

160 springs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs: Wire Diameter: Φ1.6-Φ2.0mm
Spring Waist Diameter: Φ63-Φ73mm
Pocket Spring Height: 140-280mm or 180-350mm
Spring Compression: ≤180mm
Producing Conventional Pocket Springs: Wire Diameter: Φ1.6-Φ2.3mm
Spring Waist Diameter: Φ60-Φ75mm
Pocket Spring Height: 140-280mm
Spring Compression: 50mm
Power Consumption

30KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

450-880mm

Weight

3800 KG

4500 KG

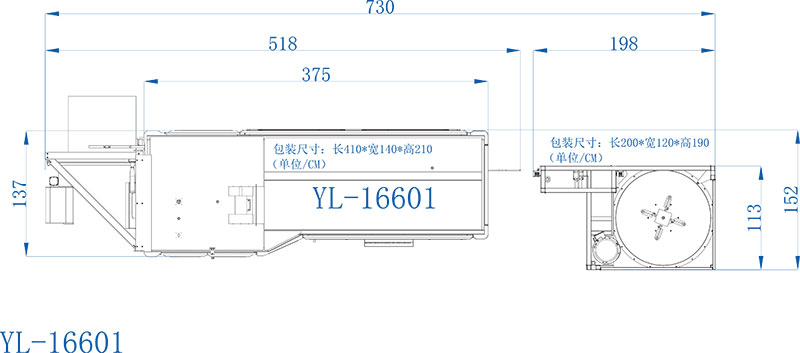

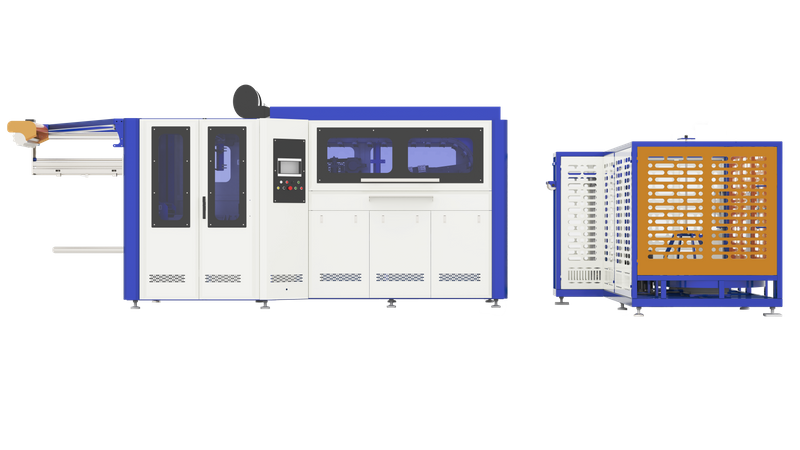

01-16601

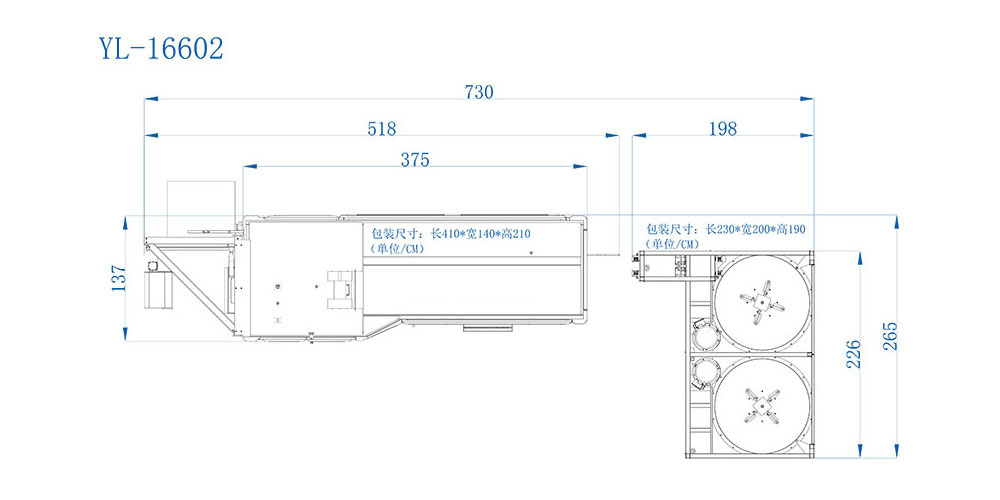

02-16602







Cost saving case

High compression sping in1.7mm wireConventonal spring in 2.0mm wire
Weight of each spring (gram)2026.5
Weight saved of eath sping (gram)6.5
Size of spring unit (mm)1800x2000x180
Spring count29x32=928 springs28x31=868 springs
Wire weight of the spring unit20x928=18560g
≈18.6kg
26.5x868 = 23002g
≈23kg
Wire weight saved of each spring unit23-18.6=4.4 (kg)
Cost saving of each spring unit (kg)¥ 5/kgx 4.4kg=¥22
$0.9/kg x4.4kg=$3.96
Cost saving for producing 500 spring units each day¥22x500=¥11000
$3.96x500= $1980



Our Advantages

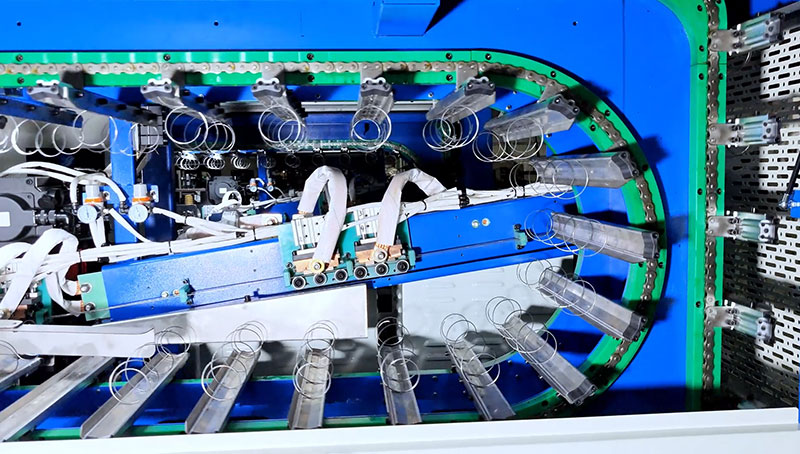

弹簧两次处理

1.   This machine can produce the highest springs in the industry,the height of the spring after pocketing can reach up to 30cm(even 35 cm)


2.  The welding devices of this machine are driven by servo motors instead of cylinders,so even in winter when the temperature is below 0 degrees, it will not affect production due to cylinder icing


3.   When producing power edge mattress, the machine has a device that tightens the non-woven, so that the thick wire springs will not be higher than the thin wire springs


4.   Under similar resilience effects, the high compression pocket spring mattresses produced can save over 20% of steel wire costs compared to conventional pocket spring mattresses


5.    Both high compression springs and conventional springs can be produced



Product name

High compression high speed automatic pocket spring coiling machine

Model

YL-16601

YL-16602

Efficiency

160 springs/min

Coiling Head

Single Wire Servo Coiling Head

Double wire servo coiling head

Working Principle

Servo Control

Spring Shape

Barrel and Cylindrical

Producing High Compression Pocket Springs:Wire Diameter: Φ1.6-Φ2.0mm
Spring Waist Diameter:Φ63-Φ73mm
Pocket Spring Height:140-280mm or 180-350mm
Spring Compression:≤180mm
Producing Conventional Pocket Springs:Wire Diameter: Φ1.6-Φ2.3mm
Spring Waist Diameter:Φ60-Φ75mm
Pocket Spring Height:140-280mm
Spring Compression:50mm
Power Consumption

30KW

Voltage

3AC380V

Input Current

80A

Frequency

50/60 Hz

Air Consumption

0.01m³/min

Air Pressure

0.5-0.7Mpa

Fabric Thickness

50-90 g/㎡

Fabric Width

450-880mm

Weight

3800 KG

4500 KG

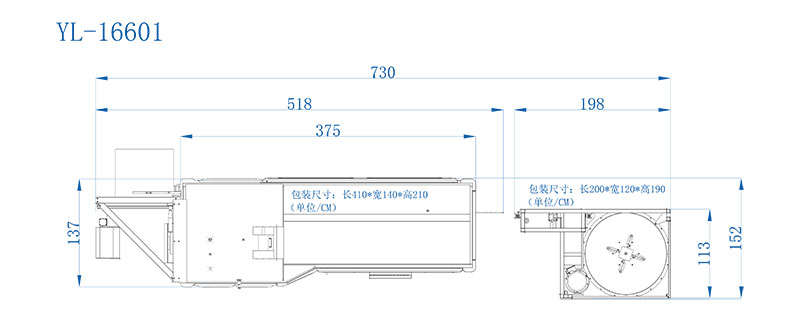

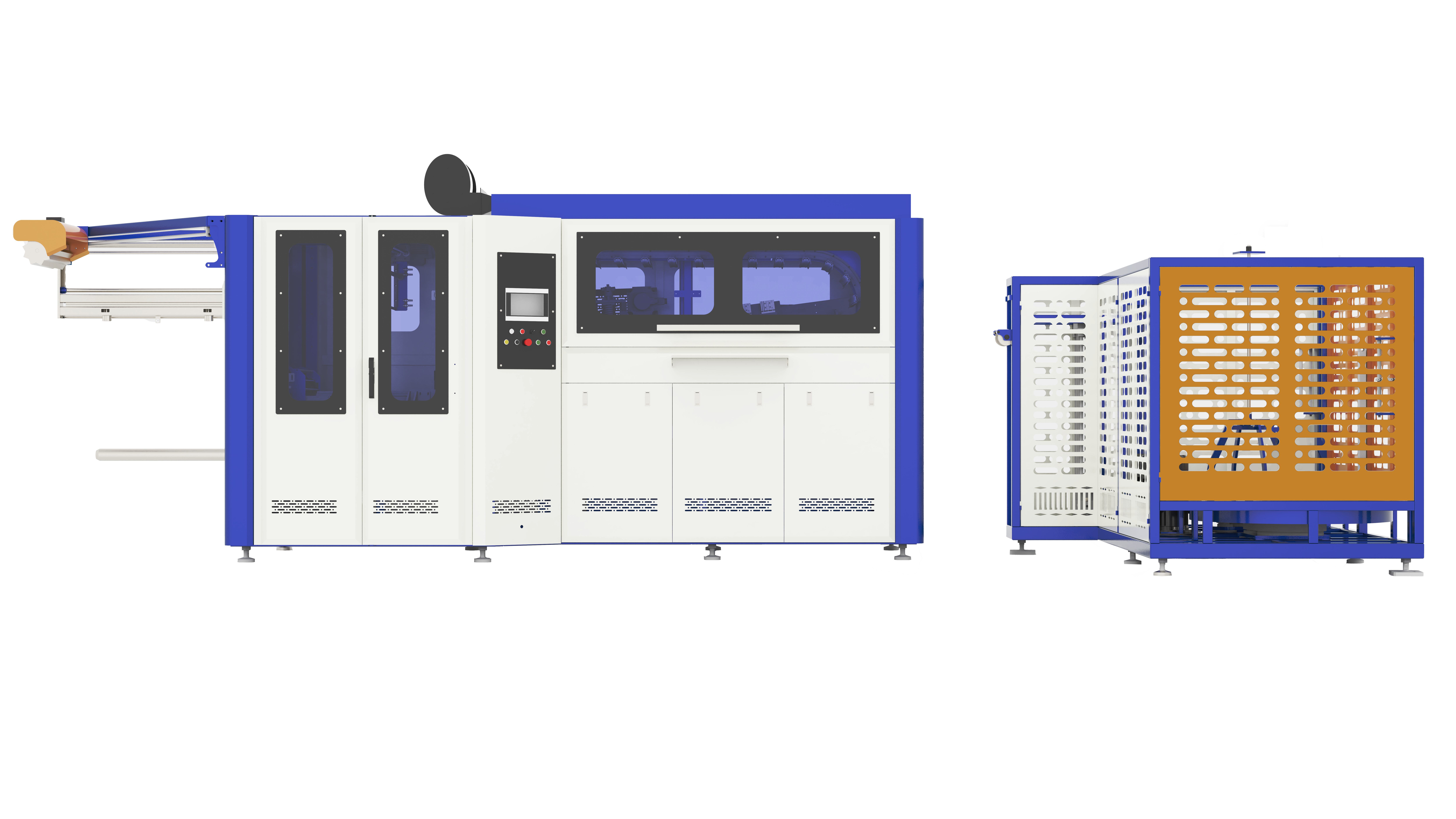

01-16601

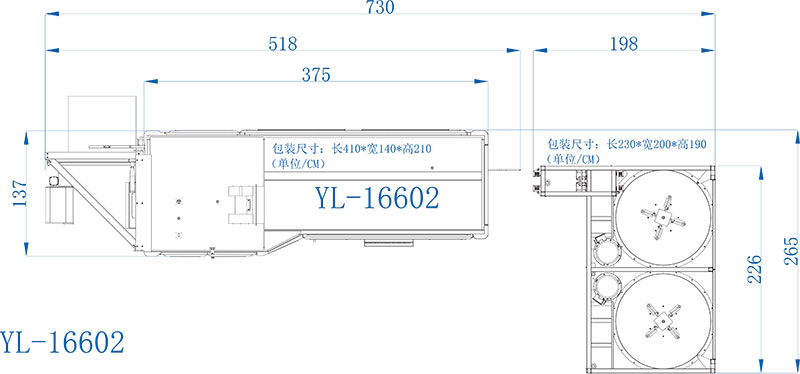

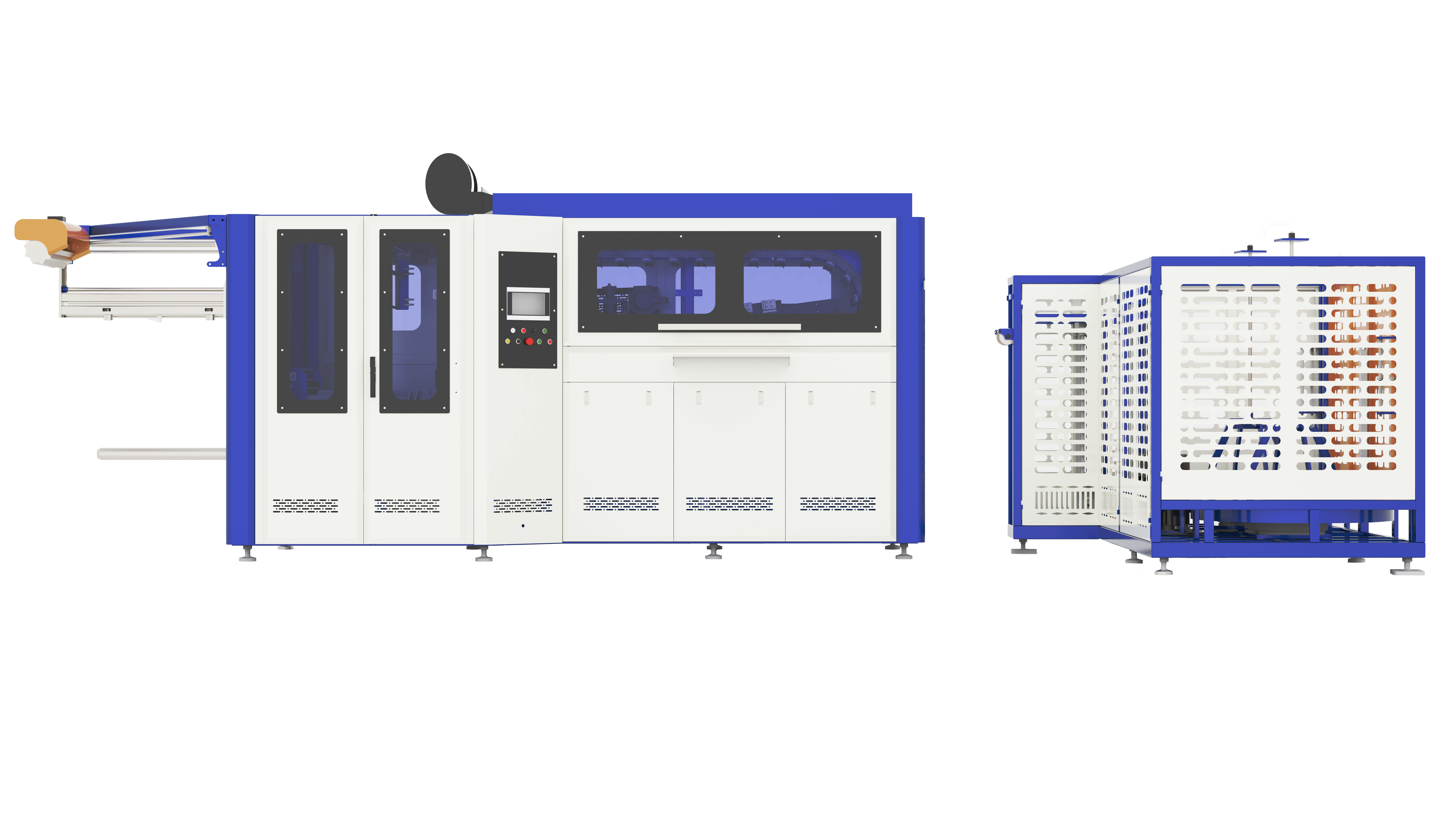

02-16602
