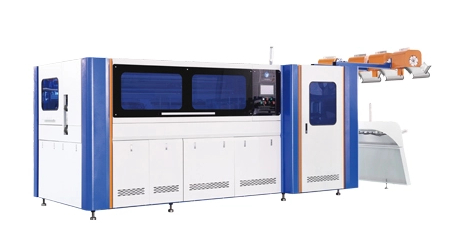

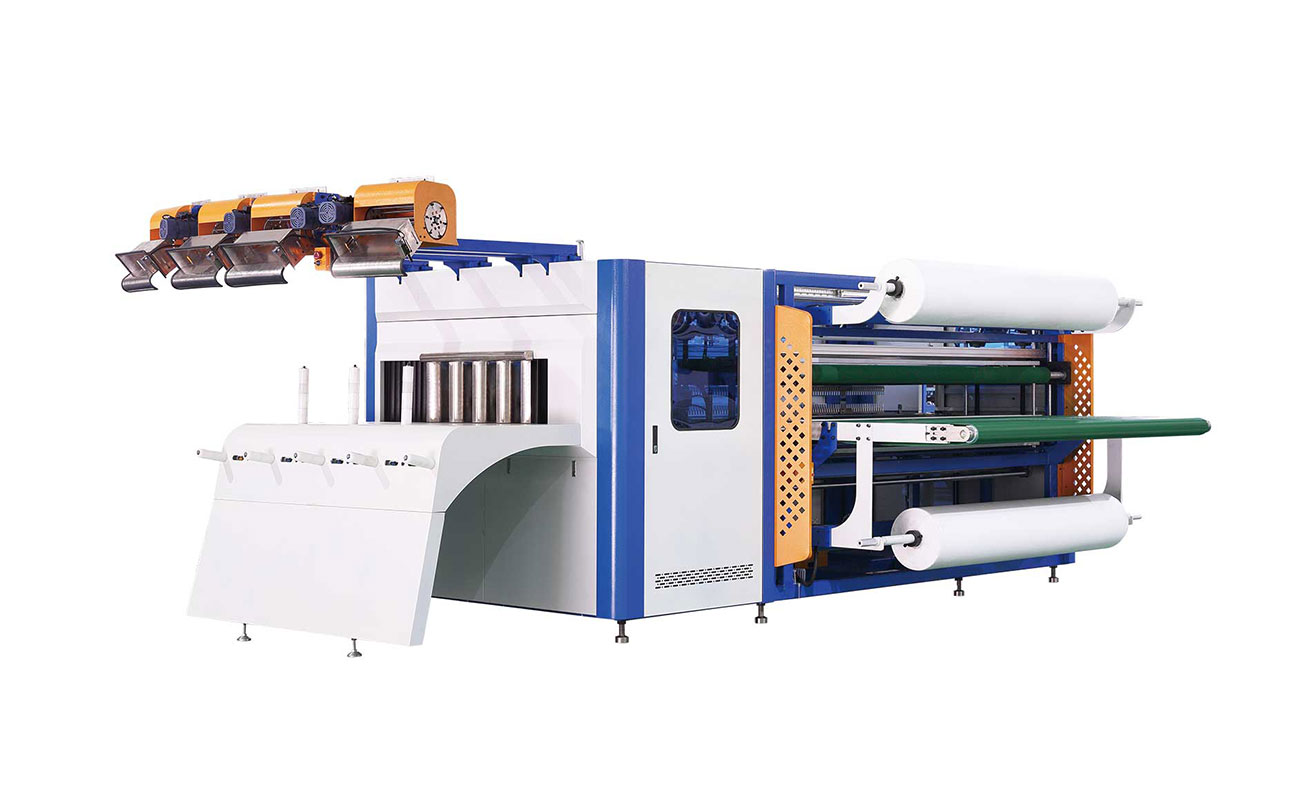

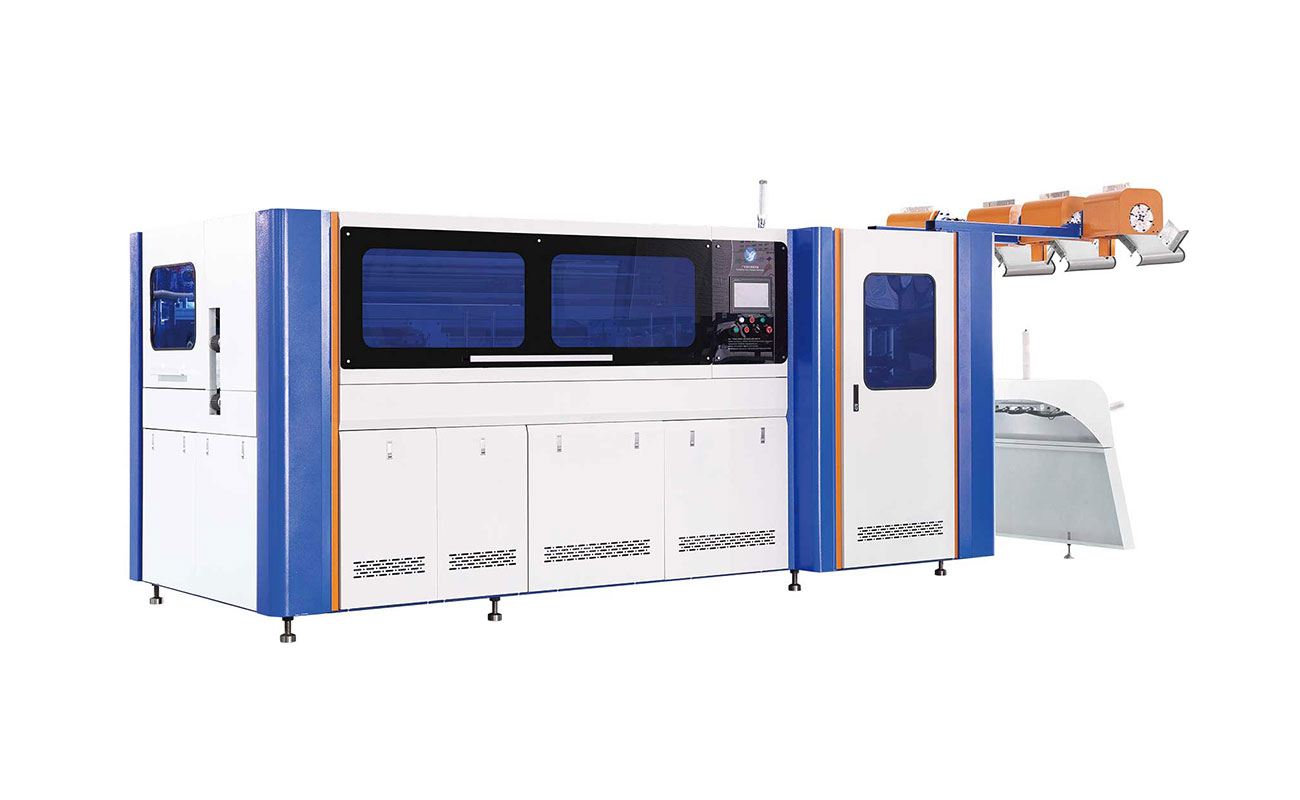

High speed automatic 4 feeding channels pocket spring assembly machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-52202

Availability:

This automatic assembly machine has 4 feeding channels, which can be matched with 4 spring machines to form an automatic production line. The efficiency of producing power-edge pocket spring uits is higher


In terms of machine structure, many drive units have replaced air cylinders with servo motors, which have fast action speed and high accuracy. The pocket spring units produced have precise dimensions and neatly arranged springs, which can meet the requirements of high-quality mattresses;



粘胶机窄边






Our Advantages


1.  Can be matched with 4 spring machines to form an automatic production line, with higher efficiency in producing power-edge mattresses


2.  The feeding structure is simple, and adjusting the height of the feeding springs is faster


3.  The machine uses very few air cylinders and are replaced by servo motors, which saves electricity costs and is more stable

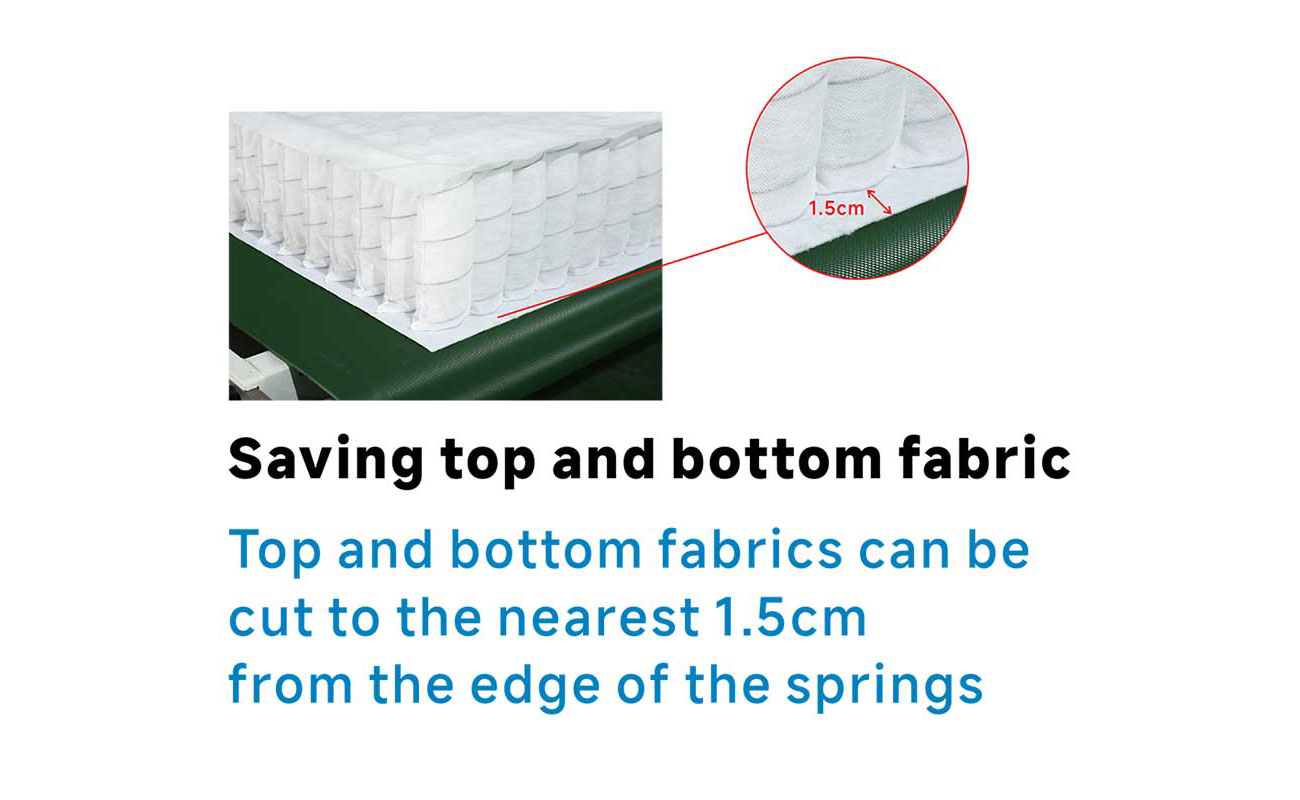

4.  The cutting blade structure for cutting bottom and top fabrics has been specially designed, and can be cut nearest to 1.5 cm away from the spring edge, which saves bottom and top fabrics compared to ordinary automatic assembly machines (nearest 5 centimeters)


5.  When connected to the automatic foam feeding machine, it is possible to produce folding roll-packed mattresses (with a foam strip pasted in the middle of the pocket spring units)


6.  The operating system is designed very simply, and the conversion of production specifications is easy and fast


Product name

High speed automatic 4 feeding channels pocket spring assembly machine

Model

YL-52202

Efficiency

18 row/min

Gluing System

Meler(Spanish)

Gluing method Spot spray and continuous spray
Pocket Spring Height: 120-300mm
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

can equip up to 4 spring machines

Weight

4500 KG

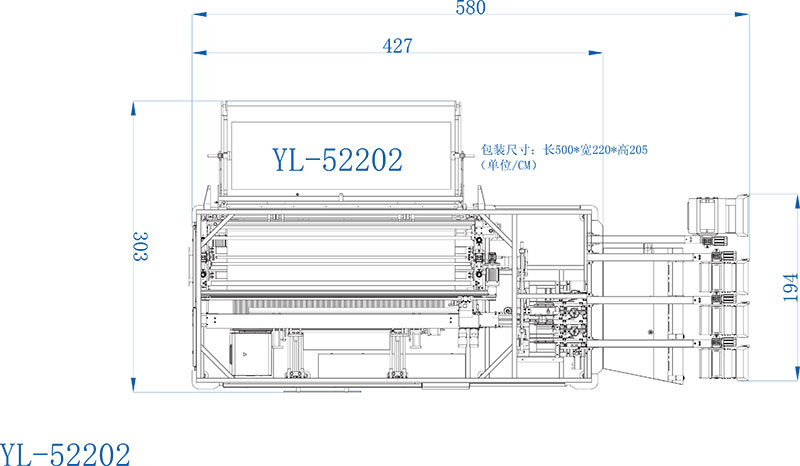

08-52202







Our Advantages


1.  Can be matched with 4 spring machines to form an automatic production line, with higher efficiency in producing power-edge mattresses


2.  The feeding structure is simple, and adjusting the height of the feeding springs is faster


3.  The machine uses very few air cylinders and are replaced by servo motors, which saves electricity costs and is more stable


4.  The cutting blade structure for cutting bottom and top fabrics has been specially designed, and can be cut nearest to 1.5 cm away from the spring edge, which saves bottom and top fabrics compared to ordinary automatic assembly machines (nearest 5 centimeters)


5.  When connected to the automatic foam feeding machine, it is possible to produce folding roll-packed mattresses (with a foam strip pasted in the middle of the pocket spring units)


6.  The operating system is designed very simply, and the conversion of production specifications is easy and fast





Product name

High speed automatic 4 feeding channels pocket spring assembly machine

Model

YL-52202

Efficiency

18 row/min

Gluing System

Meler(Spanish)

Gluing methodSpot spray and continuous spray
Pocket Spring Height:120-300mm
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

can equip up to 4 spring machines

Weight

4500 KG

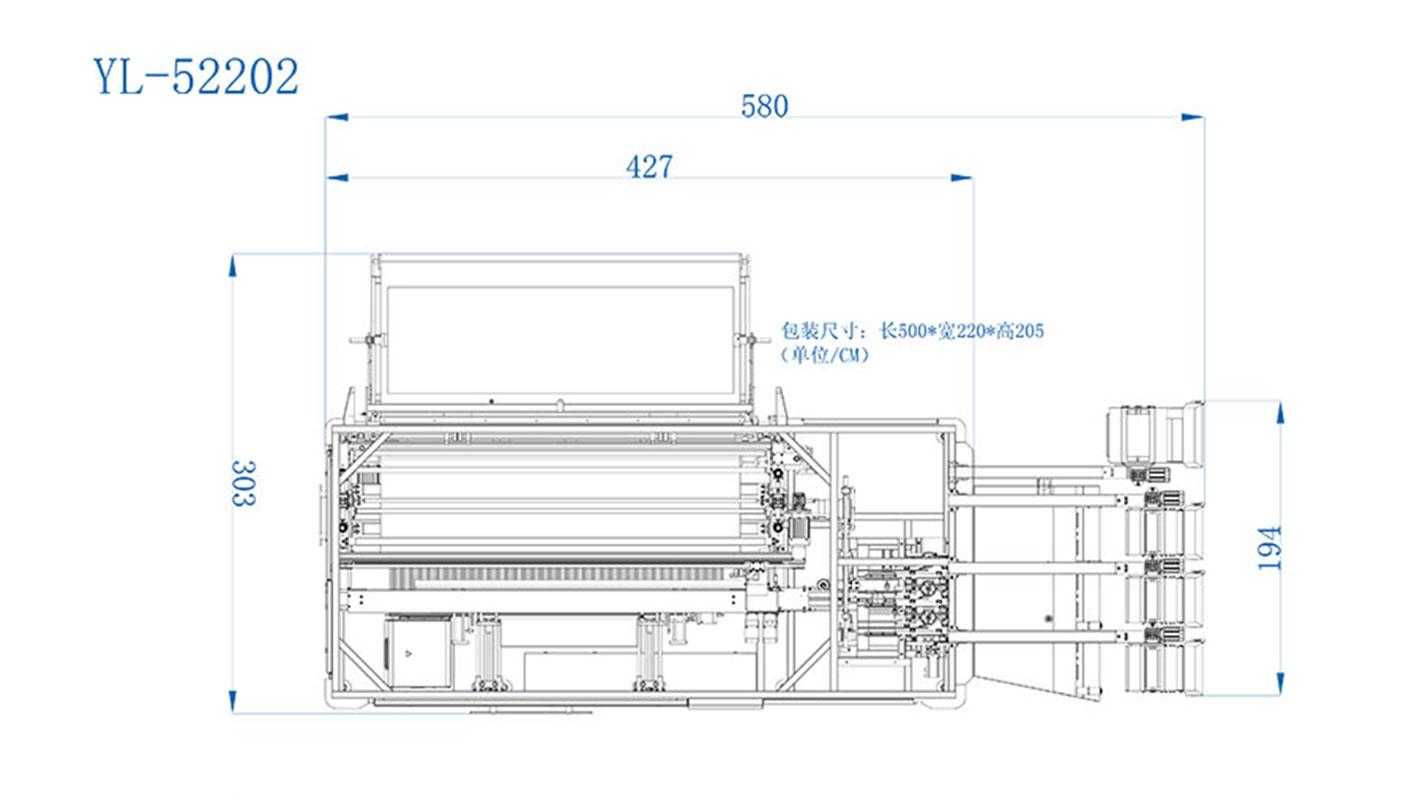

08-52202
