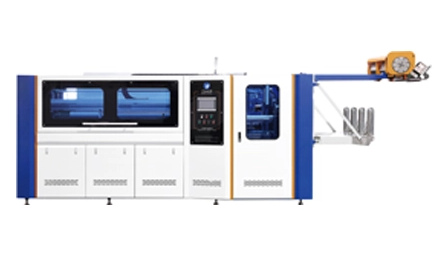

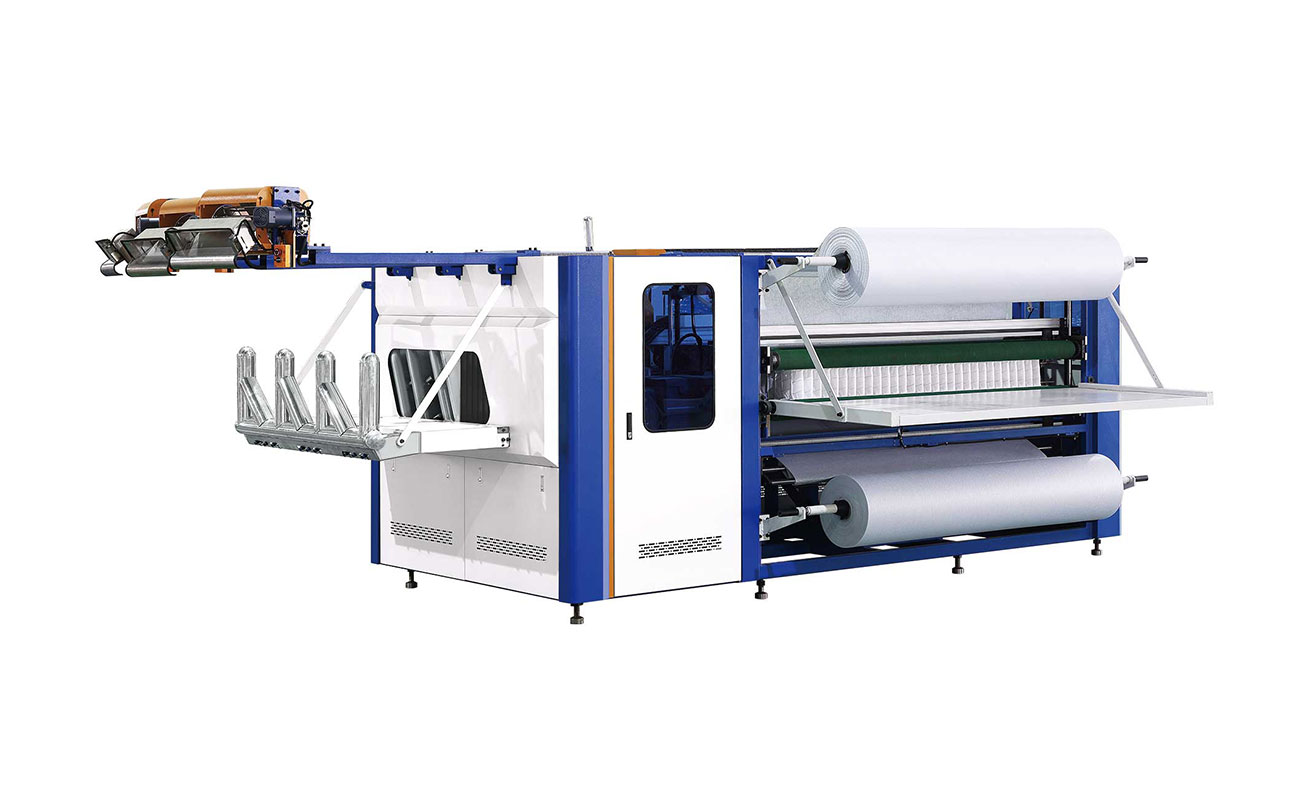

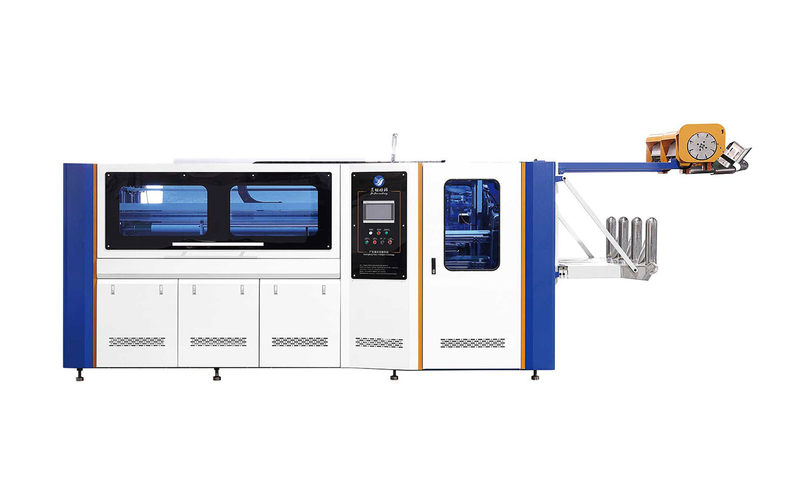

High speed automatic pocket spring assembly machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model:YL-55501

Availability:

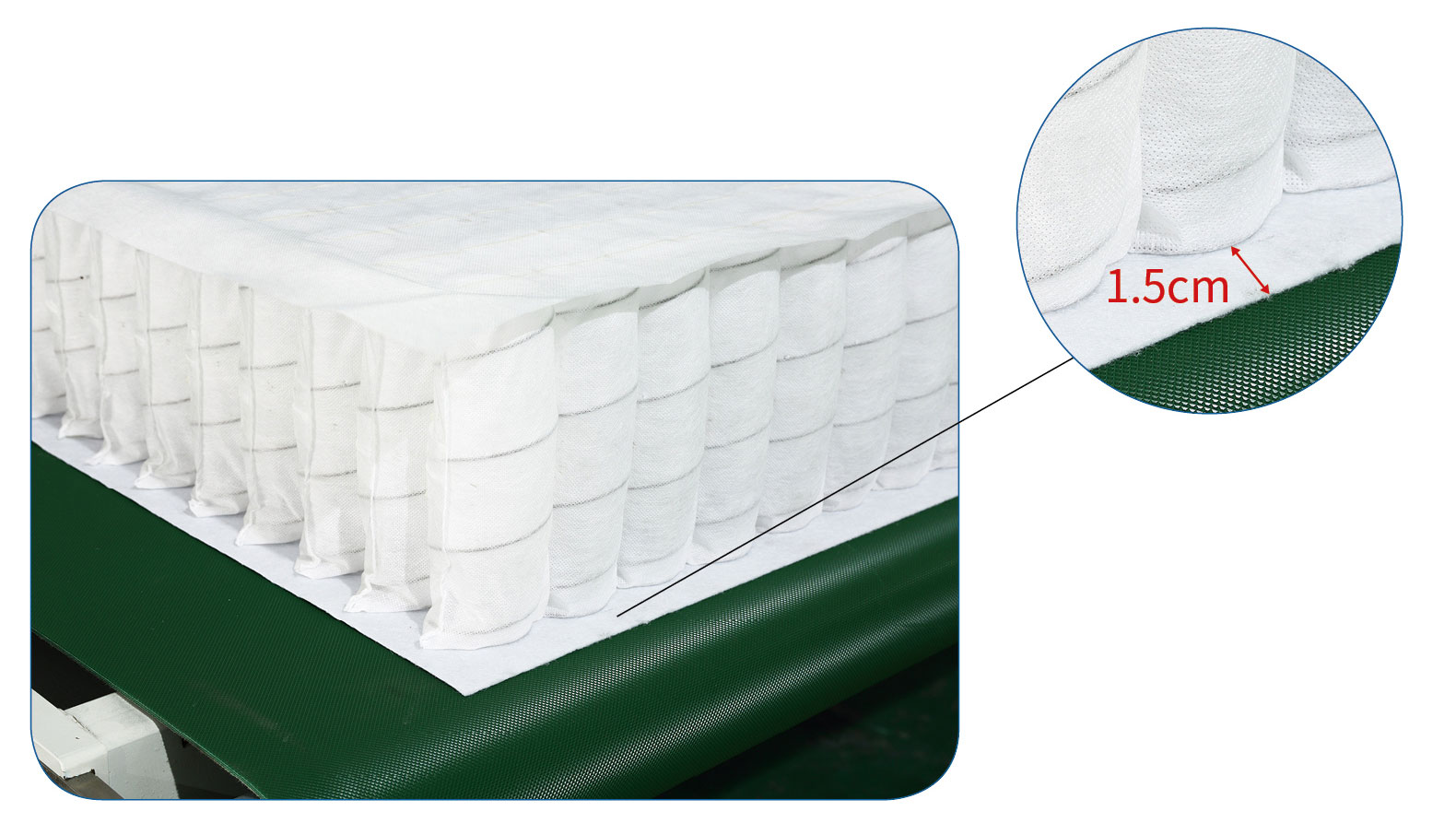

Top and bottom fabrics can be cut to the nearest 1.5cm from the edge of the springs ( saving top and bottom fabric)


粘胶机窄边





Our Advantages


1.The cutting blade structure for cutting bottom and top fabrics has  been specially designed, and can be cut nearest to 1.5 cm away from the  spring edge, which saves bottom and top fabrics compared to ordinary  automatic assembly machines (up to 5 centimeters)

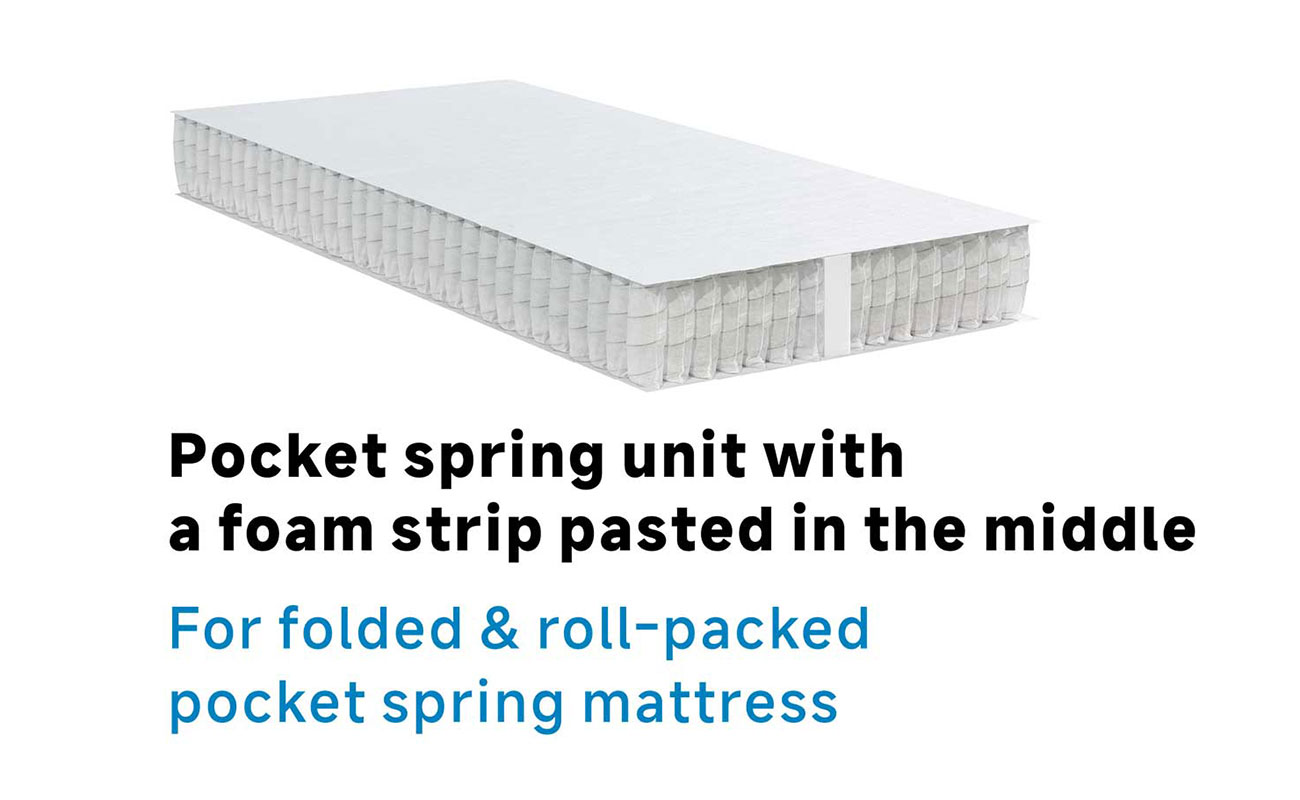

2.When connected to the automatic foam feeding machine, it is possible  to produce folding roll-packed mattresses (with a sponge strip inserted  in the middle of the pocket spring units)

3.The operating system is designed very simply, and the conversion of  production specifications is easy and fast

4.The machine is equipped with high-precision detection switches,  which, in conjunction with the program, can effectively identify defective  springs and discharge them, avoiding them from sticking to become  defective pocket spring units

5.Can produce zoned and power-edge mattresses

6. Can produce pocket spring units with double-sided , single-sided  adhered non-woven fabric, or with both sides adheres non-woven fabric

7. The machine occupies a small area, saving your factory space



Product name


High speed automatic pocket spring assembly machine

Model

YL-55501

Efficiency

16 rows/min

Gluing System

Meler(Spanish)

Working Principle

Servo Control

Gluing method

 Spot spray and continuous spray

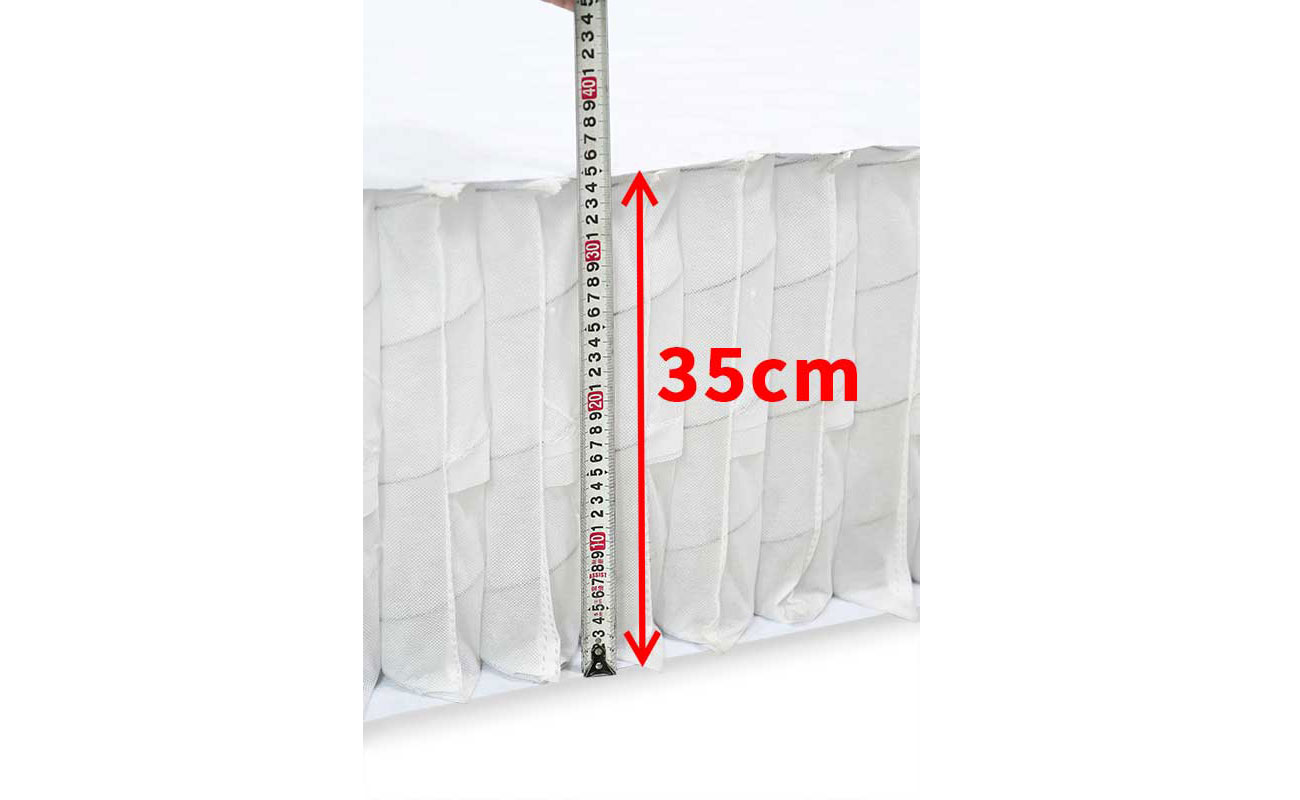

Pocket Spring Height: 100-350mm
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

 Can equip 1 or 2 or up to 3 spring machines

Weight

4000 KG


YL-55501







Top and bottom fabrics can be cut to the nearest 1.5cm from the edge of the springs ( saving top and bottom fabric)


粘胶机窄边


Our Advantages



1.The cutting blade structure for cutting bottom and top fabrics has  been specially designed, and can be cut nearest to 1.5 cm away from the  spring edge, which saves bottom and top fabrics compared to ordinary  automatic assembly machines (up to 5 centimeters)

2.When connected to the automatic foam feeding machine, it is possible  to produce folding roll-packed mattresses (with a sponge strip inserted  in the middle of the pocket spring units)

3.The operating system is designed very simply, and the conversion of  production specifications is easy and fast

4.The machine is equipped with high-precision detection switches,  which, in conjunction with the program, can effectively identify defective  springs and discharge them, avoiding them from sticking to become  defective pocket spring units

5.Can produce zoned and power-edge mattresses

6. Can produce pocket spring units with double-sided , single-sided  adhered non-woven fabric, or with both sides adheres non-woven fabric

7. The machine occupies a small area, saving your factory space





Product name


High speed automatic pocket spring assembly machine

Model

YL-55501

Efficiency

16 rows/min

Gluing System

Meler(Spanish)

Working Principle

Servo Control

Gluing method

 Spot spray and continuous spray

Pocket Spring Height:100-350mm
Power Consumption

15 KW

Voltage

3AC380V

Input Current

40A

Frequency

50/60 Hz

Air Consumption

0.25m³/min

Air Pressure

0.5-0.6Mpa

Form auto production line

 Can equip 1 or 2 or up to 3 spring machines

Weight

4000 KG


YL-55501
